PackageDFN
MountingSurface Mount
Power78W
Quick Jump:
Technical Specifications
Alpha & Omega AON6298 technical specifications.
General
Package/Case
DFN
Continuous Drain Current (ID)
46A
Drain to Source Voltage (Vdss)
100V
Input Capacitance
1.307nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
78W
Mount
Surface Mount
Number of Elements
1
Packaging
Tape and Reel
Power Dissipation
78W
Radiation Hardening
No
Rds On Max
16.5mR
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Alpha & Omega AON6298 Datasheet
Download the complete datasheet for Alpha & Omega AON6298 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

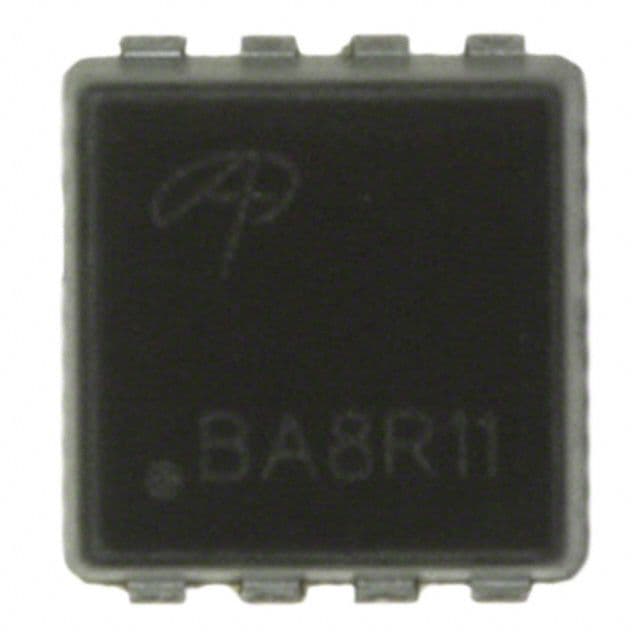

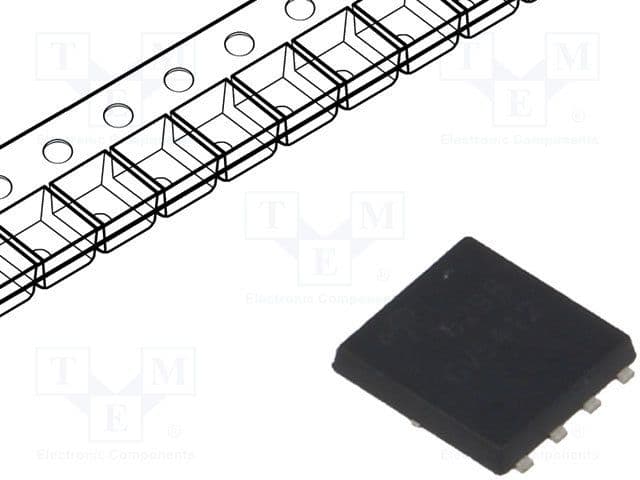

Product Images
