Alpha & Omega AOW25S65 technical specifications.
General
Package/Case
TO-262
Continuous Drain Current (ID)
25A
Drain to Source Voltage (Vdss)
650V
Input Capacitance
1.278nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
357W
Mount
Through Hole
Rds On Max
190mR
RoHS Compliant
Yes
Series
aMOS™
Compliance
RoHS
Compliant
Datasheet
Alpha & Omega AOW25S65 Datasheet
Download the complete datasheet for Alpha & Omega AOW25S65 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

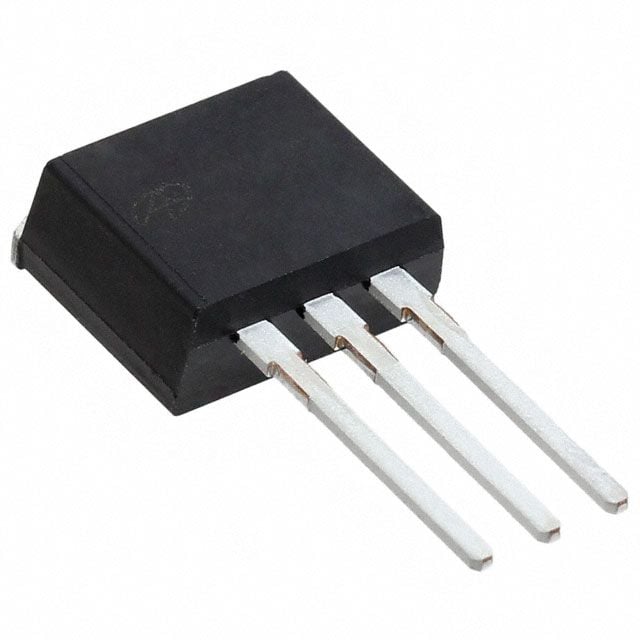

Product Images
