Illuminated tactile switch featuring a green, 0.5mm stem actuator and SPST throw configuration. Surface mountable with gull wing termination, this component offers a 50mA contact current rating at 12VDC. It boasts a mechanical and electrical life of 300,000 cycles, operating within a temperature range of -30°C to 85°C. Packaged on tape and reel, this RoHS compliant switch is designed for demanding applications.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Alps Electric SKHMQLE010 technical specifications.
General
| Actuator Color | Green |
| Actuator Length | 0.5mm |
| Actuator Type | STEM |
| Package/Case | SMD/SMT |
| Color | Green |
| Contact Current Rating | 50mA |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 8mm |
| Electrical Life | 300000Cycles |
| Height | 3.1mm |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Operating Force | 1.57N |
| Orientation | Straight |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SKHM |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Alps Electric SKHMQLE010 Datasheet
Download the complete datasheet for Alps Electric SKHMQLE010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

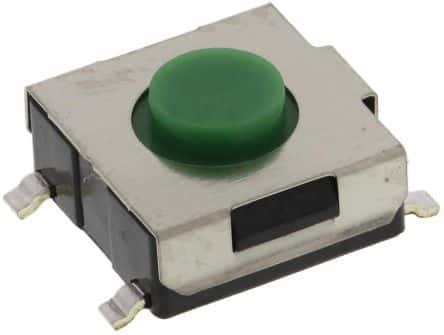

Product Images
