Surface mount fixed inductor featuring 1.1µH inductance with a 10% tolerance, tested at 1MHz. This broadband conical wirewound component utilizes a powdered iron core and supports a maximum DC current of 438mA. It offers a DC resistance of 640mΩ and operates within a temperature range of -55°C to 125°C. Packaged in tape and reel, this unshielded inductor is RoHS compliant.
PackageNonstandard
Current Rating438mA
MountingSurface Mount
Inductance1.1uH
Quick Jump:
Technical Specifications
American Technical Ceramics 506WLSM1R10KT438T technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 438mA |
| DC Resistance (DCR) | 640mR |
| Depth | 2.03mm |
| Height | 2.67mm |
| Height - Seated (Max) | 0.105inch |
| Inductance | 1.1uH |
| Length | 0.127inch |
| Max DC Current | 438mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 506WLS |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 10% |
| Width | 0.08inch |
Compliance
| RoHS | Compliant |
Datasheet
American Technical Ceramics 506WLSM1R10KT438T Datasheet
Download the complete datasheet for American Technical Ceramics 506WLSM1R10KT438T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

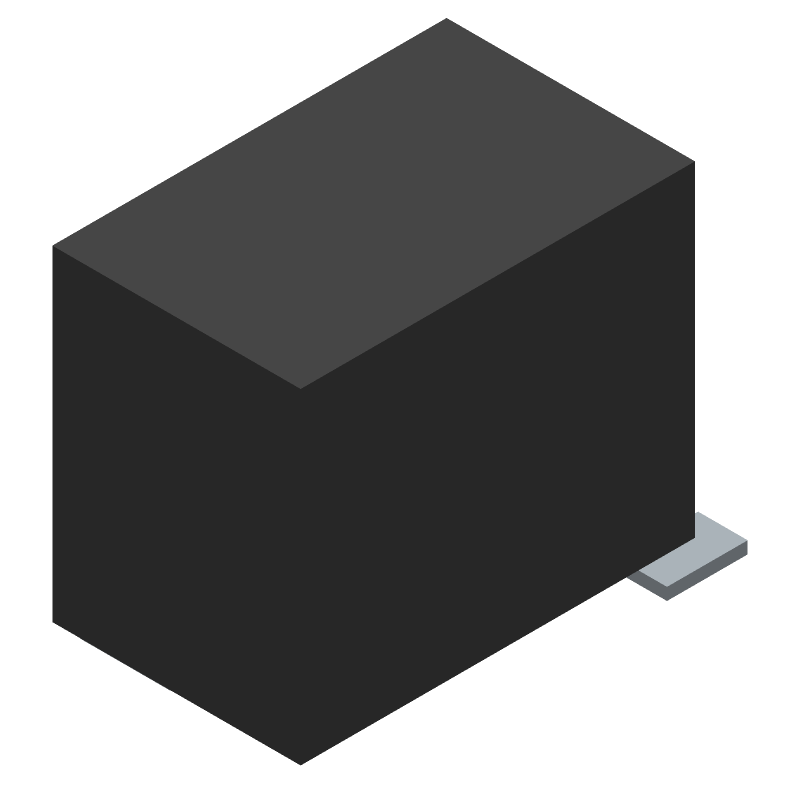

Product Images
