22pF, 200V C0G dielectric multilayer ceramic capacitor with 1% tolerance. Features ultra-low ESR and a 0402 (1005 metric) surface mount package. Operates from -55°C to 125°C and is supplied on tape and reel.
Package0402
Capacitance22pF
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600L220FT200T technical specifications.
General
Capacitance
22pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Depth
0.51mm
Dielectric
C0G
Height
0.6mm
Length
1.02mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
ATC 600L
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
200V
DC Rated Voltage
200V
Width
0.51mm
Compliance
RoHS
Compliant
Datasheet
American Technical Ceramics 600L220FT200T Datasheet
Download the complete datasheet for American Technical Ceramics 600L220FT200T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

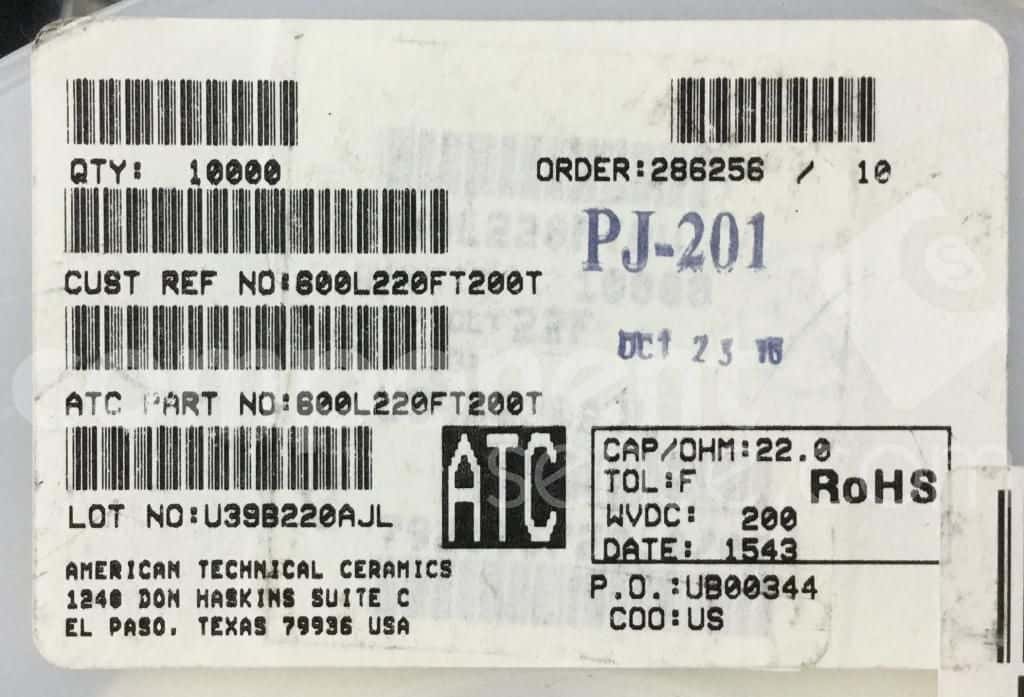

Product Images
