0.3pF, 250V C0G multilayer ceramic capacitor in a 0603 (1608 metric) surface mount package. Features ultra-low ESR, operating temperature range of -55°C to 125°C, and is supplied on tape and reel. RoHS compliant.
Package0603
Capacitance0.3pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600S0R3AT250XT technical specifications.
General
Capacitance
0.3pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Dielectric
C0G
Height
0.89mm
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
ATC 600S
Termination
SMD/SMT
Voltage Rating
250V
DC Rated Voltage
250V
Width
0.81mm
Compliance
RoHS
Compliant
Datasheet
American Technical Ceramics 600S0R3AT250XT Datasheet
Download the complete datasheet for American Technical Ceramics 600S0R3AT250XT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

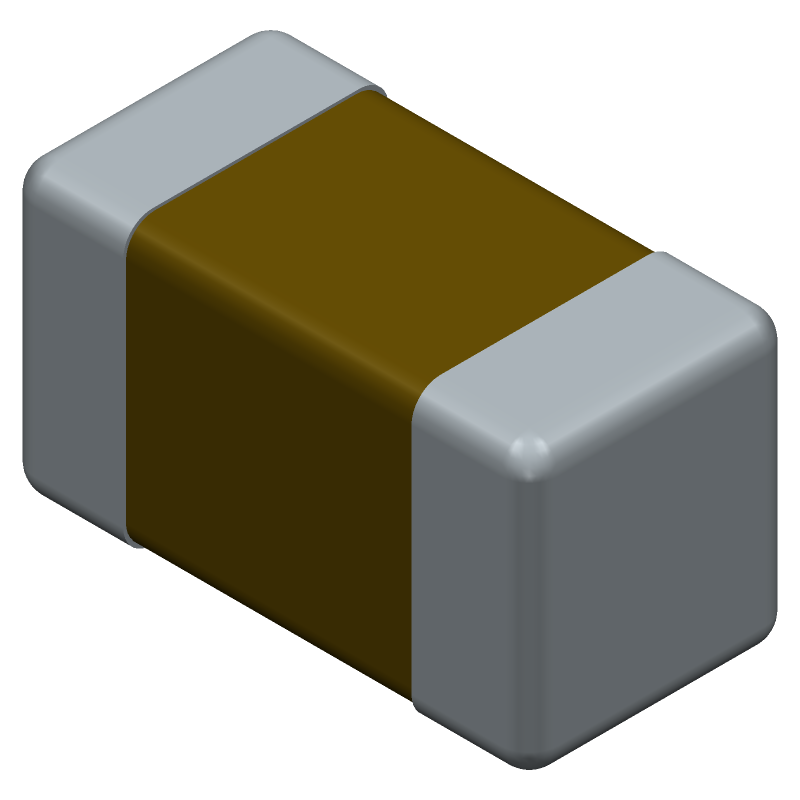

Product Images
