Multilayer Ceramic Capacitor (MLCC) with 3.9pF capacitance and 250V DC rating. Features C0G dielectric for stable performance across temperature ranges from -55°C to 125°C. Packaged in a compact 0603 (1608 metric) surface-mount case with dimensions of 0.063" length, 0.032" width, and 0.035" thickness. Offers ultra-low ESR and is supplied on tape and reel for automated assembly. RoHS compliant.
Package0603
Capacitance3.9pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600S3R9BT250XT technical specifications.
General
| Capacitance | 3.9pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Dielectric | C0G |
| Height | 0.89mm |
| Length | 0.063inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ATC 600S |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 0.032inch |
Compliance
| RoHS | Compliant |
Datasheet
American Technical Ceramics 600S3R9BT250XT Datasheet
Download the complete datasheet for American Technical Ceramics 600S3R9BT250XT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

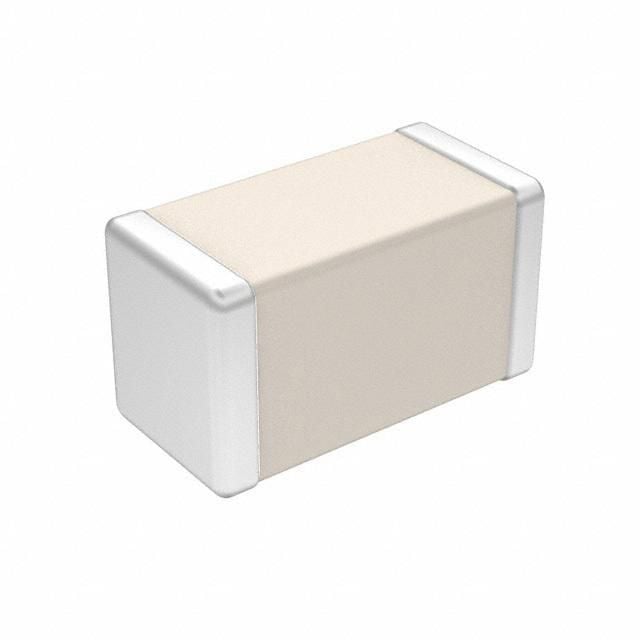

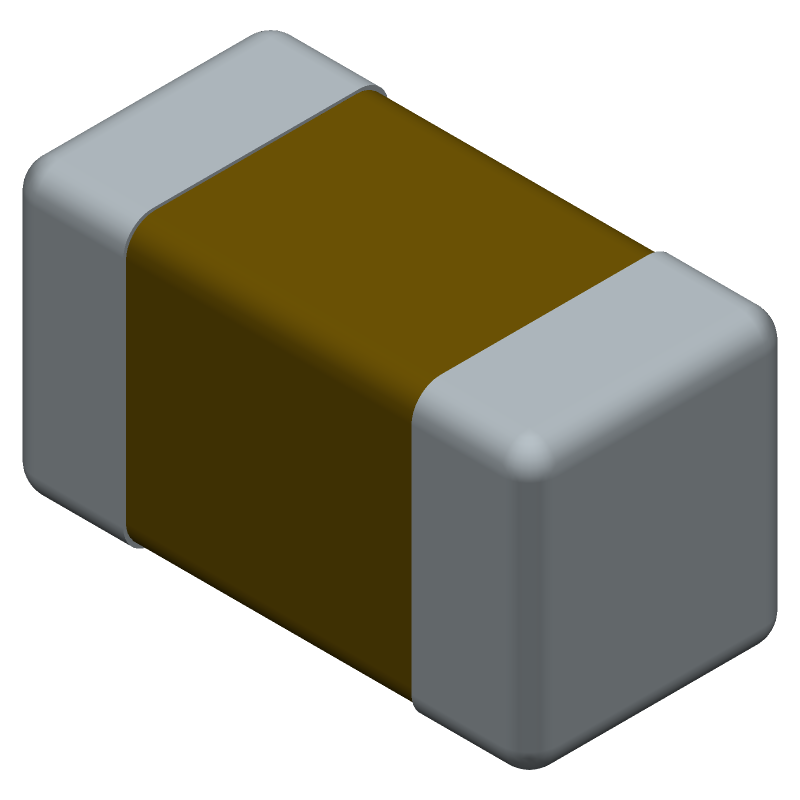

Product Images
