Current Rating3A
MountingThrough Hole, PCB, Plug-In
Quick Jump:
Technical Specifications
Amperite 115NO5 technical specifications.
General
Approvals
UL
Coil Voltage (AC)
115V
Coil Voltage (DC)
115V
Contact Current Rating
3A
Contact Material
Silver, Cadmium
Current Rating
3A
Height
23.8mm
Length
42.9mm
Max Current Rating
3A
Max Operating Temperature
80°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
115V
Mount
Through Hole, PCB, Plug-In
Nominal Input Voltage
115V
Number of Poles
1
Reach SVHC Compliant
Unknown
Termination
Circular
Throw Configuration
SPST
Voltage Rating (AC)
115V
Weight
28g
Width
28.6mm
Compliance
RoHS
Not Compliant
Datasheet
Amperite 115NO5 Datasheet
Download the complete datasheet for Amperite 115NO5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

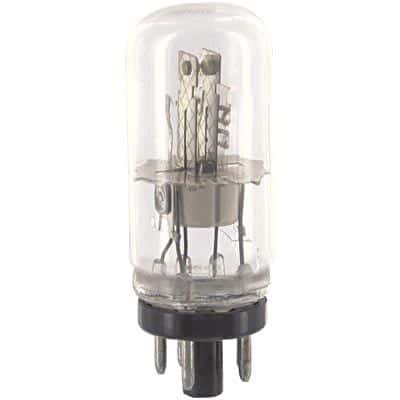

Product Images
