The Amphenol 034-5023 is a wire housing with a silver housing color and a nickel-plated brass body. It features gold-plated contacts and a 50R impedance. This component is suitable for use in high-frequency applications up to 6GHz and can withstand operating temperatures between -65°C and 165°C. The wire housing is lead-free and can withstand 500 mating cycles.
Frequency6GHz
MountingThrough Hole, Panel, Bulkhead, Front Side Nut, PCB
Quick Jump:
Technical Specifications
Amphenol 034-5023 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 6GHz |
| Gender | Male |
| Housing Color | Silver |
| Impedance | 50R |
| Lead Free | Lead Free |
| Mating Cycles | 500 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole, Panel, Bulkhead, Front Side Nut, PCB |
| Number of Ports | 1 |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 034-5023 Datasheet
Download the complete datasheet for Amphenol 034-5023 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

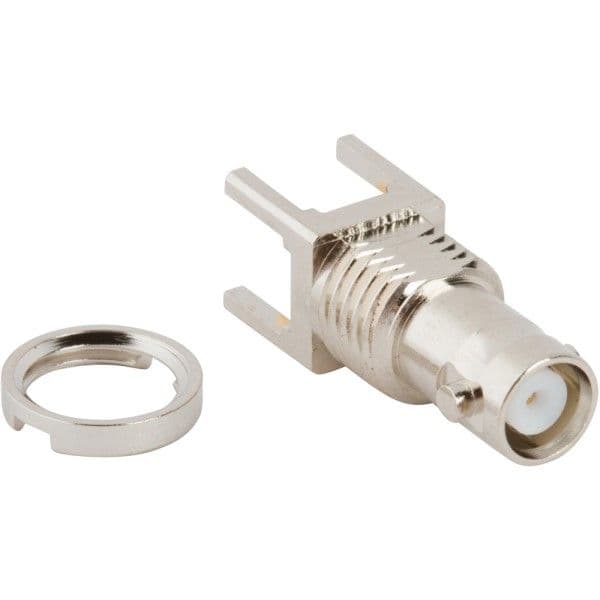

Product Images
