PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol NPA-500B-005G technical specifications.
General
Accuracy
1.5%
Package/Case
SOIC
Impedance
5kR
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
60PSI
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
1mA
Operating Pressure
1PSI
Operating Supply Current
1.5mA
Output Type
Analog Voltage, Analog, Voltage
Output Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Port Style
Barbed
Pressure Type
Vented Gauge
RoHS Compliant
Yes
Series
NPA-500
Termination
Gull Wing
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Amphenol NPA-500B-005G Datasheet
Download the complete datasheet for Amphenol NPA-500B-005G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

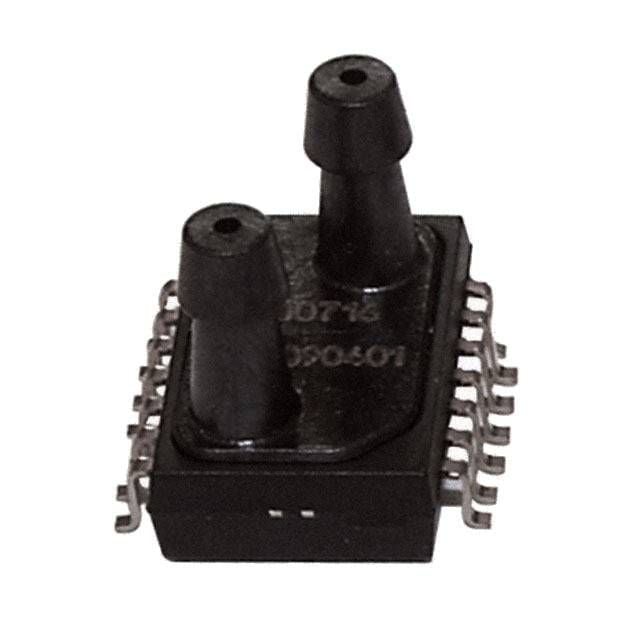

Product Images
