True RMS digital multimeter featuring a 10000-count LCD display and 0.25% accuracy. Measures AC voltage up to 750V, DC voltage up to 1kV, resistance up to 40MΩ, capacitance up to 400µF, and frequency up to 2kHz. Includes an optical PC interface for data transfer and temperature measurement capabilities. Operates on a 9V battery and has a maximum current rating of 10A.
Frequency100Hz
Capacitance400uF
Resistance40MR
Quick Jump:
Technical Specifications
Amprobe 38XR-A technical specifications.
General
Accuracy
0.25%
Battery Type
9V
Capacitance
400uF
Display Type
LCD
Frequency
100Hz
Height
60mm
Interface
RS-232
Length
196mm
Max Current Rating
10A
Max Frequency
2kHz
Max Operating Temperature
45°C
Min Operating Temperature
0°C
Reach SVHC Compliant
No
Resistance
40MR
Series
XR
Voltage Rating (AC)
750V
DC Rated Voltage
1kV
Weight
400g
Width
96mm
Compliance
RoHS
Compliant
Datasheet
Amprobe 38XR-A Datasheet
Download the complete datasheet for Amprobe 38XR-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

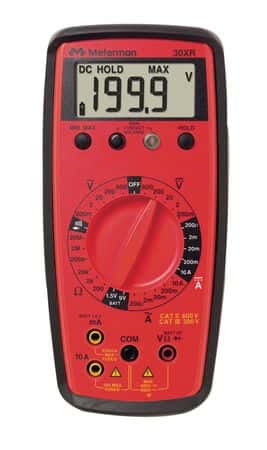

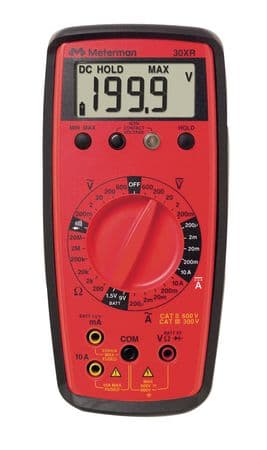

Product Images
