The AS5030-ATST is a magnetic linear position sensor with 8-bit resolution, operating on a 5.5V supply voltage. It features a TSSOP-16 package and is lead-free. The sensor has a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It draws a supply current of 14mA and an output current of 4mA, with an output type of PWM. The AS5030-ATST is packaged in tape and reel, with 4500 units per package.
PackageTSSOP
Current14mA
Quick Jump:
Technical Specifications
AMS AS5030-ATST technical specifications.
General
| Built in Switch | No |
| Package/Case | TSSOP |
| Detent | No |
| Encoder Type | Magnetic |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Operating Supply Voltage | 5.5V |
| Output Current | 4mA |
| Output Type | PWM |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Resolution | 8b |
| Supply Current | 14mA |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
AMS AS5030-ATST Datasheet
Download the complete datasheet for AMS AS5030-ATST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

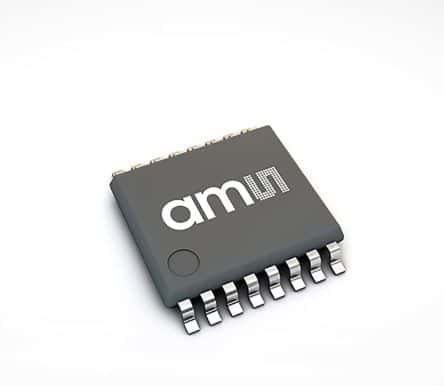

Product Images
