Dual channel, 12-bit analog-to-digital converter (ADC) with IF sampling capability, achieving a 105 MSPS sampling rate. Features analog input signal conditioning, 2 differential analog inputs, and a parallel interface. Offers 67dB Signal to Noise Ratio (SNR) and 0.99 LSB Differential Nonlinearity (DNL). Operates with a 5V supply voltage, with a maximum power dissipation of 2.2W. Packaged in CLCC with Tin, Lead contact plating, suitable for operation between -55°C and 125°C.
PackageCLCC
PolarityUnipolar
Power1.8W
Quick Jump:
Technical Specifications
Analog Devices AD10200BZ technical specifications.
General
Package/Case
CLCC
Contact Plating
Tin, Lead
Differential Nonlinearity
0.99LSB
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
3LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
2.048V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.2W
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of Inputs
2
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tray
Polarity
Unipolar
Power Consumption
1.8W
Power Dissipation
2.2W
Resolution
12b
RoHS Compliant
No
Sampling Rate
105MS/s
Signal to Noise Ratio (SNR)
67dB
Supply Type
Analog, Digital
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD10200BZ Datasheet
Download the complete datasheet for Analog Devices AD10200BZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

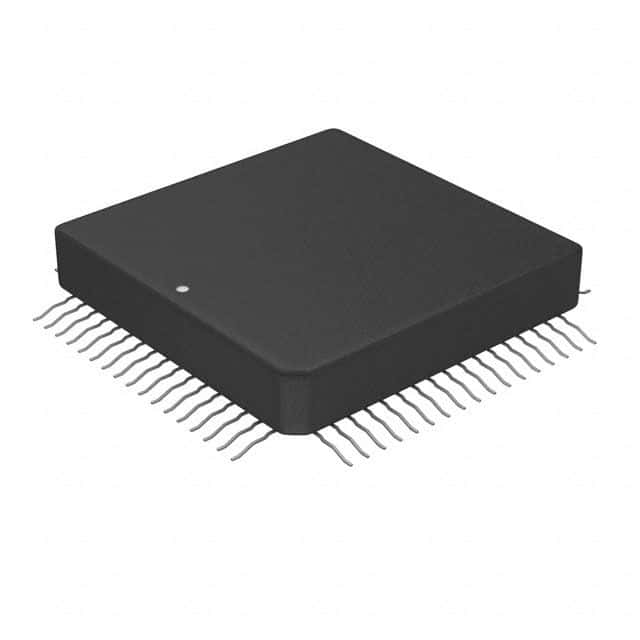

Product Images
