Dual-channel, 14-bit analog-to-digital converter (ADC) featuring a 65 MSPS sampling rate and 70dB signal-to-noise ratio. This integrated circuit offers six analog inputs with single-ended input type and a maximum input voltage of 4V. The device operates across a temperature range of -55°C to 125°C and utilizes a parallel interface. Packaged in CLCC, it has a maximum power dissipation of 3.9W.
PackageCLCC
PolarityBipolar
Power3.5W
Quick Jump:
Technical Specifications
Analog Devices AD10465BZ technical specifications.
General
Package/Case
CLCC
Input Capacitance
4pF
Input Type
SINGLE-ENDED
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
3.9W
Number of A/D Converters
2
Number of Analog Inputs
6
Number of Bits
14
Number of Channels
2
Number of Converters
2
Number of Inputs
6
Package Quantity
1
Packaging
Tray
Polarity
Bipolar
Power Consumption
3.5W
Power Dissipation
3.9W
Resolution
14b
RoHS Compliant
No
Sampling Rate
65MS/s
Signal to Noise Ratio (SNR)
70dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD10465BZ Datasheet
Download the complete datasheet for Analog Devices AD10465BZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

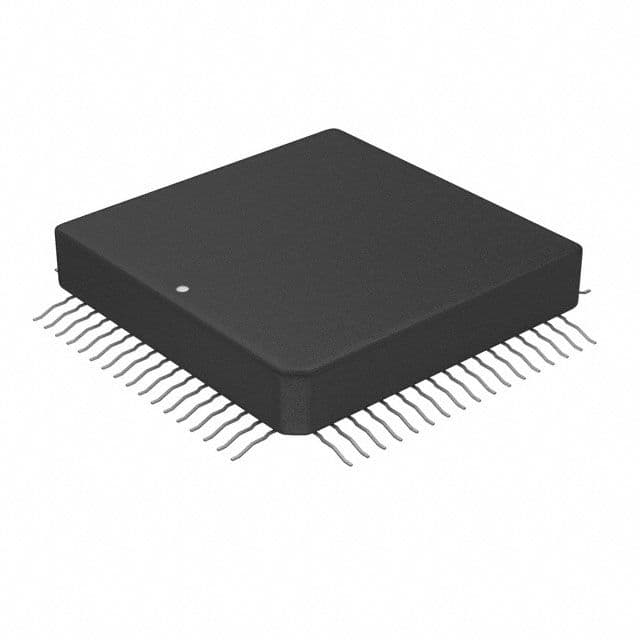

Product Images
