Precision shunt voltage reference IC offering a fixed 1.2V output with 0.2% tolerance. Designed for micropower applications, it operates with a cathode current as low as 50µA and supports a maximum input current of 10mA. Features include a minimum output voltage of 1.225V and a maximum output current of 10mA. This component is supplied in tape and reel packaging, with a package quantity of 3000 units. It is RoHS and REACH SVHC compliant, operating within a temperature range of -40°C to 85°C.
Quick Jump:
Technical Specifications
Analog Devices AD1580BKSZ-REEL7 technical specifications.
General
Cathode Current
50uA
Lead Free
Contains Lead
Max Input Current
10mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Min Output Voltage
1.225V
Output Current
10mA
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Yes
Reference Type
Shunt
RoHS Compliant
Yes
Tolerance
0.2%
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD1580BKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD1580BKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

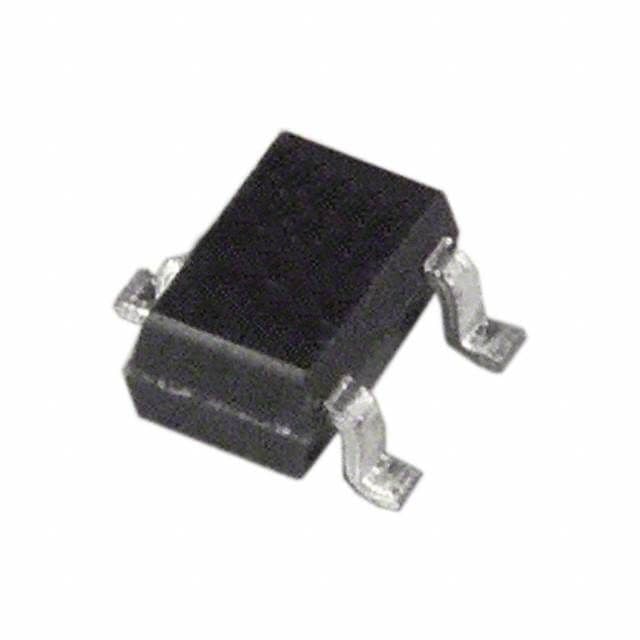

Product Images
