12-bit, 100 kSPS Analog-to-Digital Converter (ADC) with a parallel interface. Features single-ended input, bipolar/unipolar polarity, and a CDIP package for through-hole mounting. Operates with dual supply voltages from 11.4V to 16.5V, offering a maximum input voltage of 10.1V. Integral nonlinearity is 1 LSB, with a power dissipation of 575mW. Suitable for general-purpose applications within an operating temperature range of -55°C to 125°C.
PackageCDIP
MountingThrough Hole
PolarityBipolar, Unipolar
Power385mW
Quick Jump:
Technical Specifications
Analog Devices AD1674TD technical specifications.
General
Package/Case
CDIP
Converter Type
GENERAL PURPOSE
Dual Supply Voltage
12V
Height
4.2mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Length
37.85mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
11.4V
Max Input Voltage
10.1V
Min Input Voltage
9.9V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
575mW
Mount
Through Hole
Number of A/D Converters
1
Number of Analog Inputs
2
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
1
Packaging
Rail/Tube
Polarity
Bipolar, Unipolar
Power Consumption
385mW
Power Dissipation
575mW
Radiation Hardening
No
Resolution
12b
RoHS Compliant
No
Sampling Rate
100KS/s
Supply Type
Dual
Width
15.49mm
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD1674TD Datasheet
Download the complete datasheet for Analog Devices AD1674TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

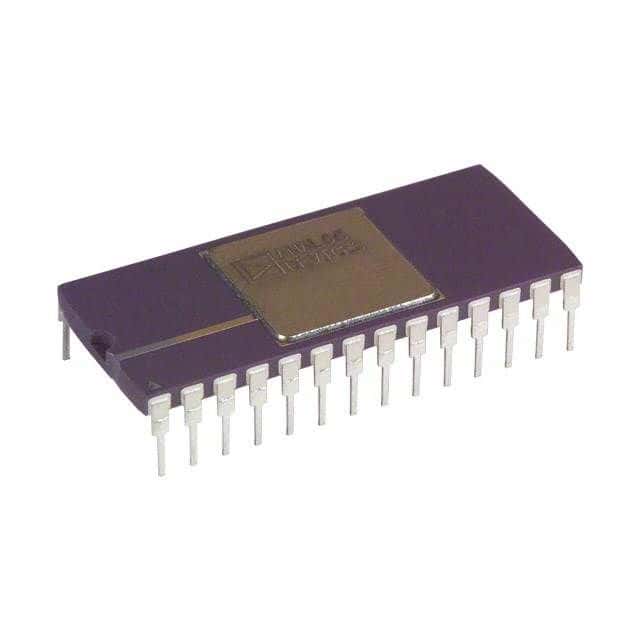

Product Images
