16-bit, single-channel Digital-to-Analog Converter (DAC) with a 12.5MS/s conversion rate. Features bipolar output polarity and a signal-to-noise ratio (SNR) of 110dB. Operates with a dual 5V supply voltage, ranging from 4.75V to 5.25V. Surface mountable in a SOIC package with tin, matte contact plating. RoHS compliant and designed for serial interface communication.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD1851RZ technical specifications.
General
Package/Case
SOIC
Contact Plating
Tin, Matte
Conversion Rate
12.5MS/s
Dual Supply Voltage
5V
Height
2.35mm
Interface
Serial
Lead Free
Contains Lead
Length
10.5mm
Max Dual Supply Voltage
5.25V
Min Dual Supply Voltage
4.75V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Number of Outputs
1
Operating Supply Voltage
5V
Output Polarity
Bipolar
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
12.5MS/s
Signal to Noise Ratio (SNR)
110dB
Supply Current
10mA
Supply Type
Dual
Weight
0.023492oz
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD1851RZ Datasheet
Download the complete datasheet for Analog Devices AD1851RZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

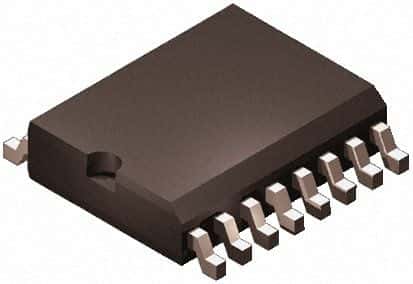

Product Images
