12-bit Resolver to Digital converter with ±11 arcmin accuracy. Features parallel and 3-wire SPI serial interfaces, operating from a 4.75V to 5.25V supply. This surface mount component offers 12-bit resolution and a maximum operating temperature of 125°C. Housed in a 44-pin LQFP package with tin, matte contact plating.
PackageLQFP
MountingSurface Mount
Power50mW
Quick Jump:
Technical Specifications
Analog Devices AD2S1200YSTZ technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Differential Nonlinearity
0.3LSB
Height
1.4mm
Interface
Serial, Parallel
Lead Free
Contains Lead
Length
10mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
18mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
12
Number of Channels
1
Operating Supply Voltage
5V
Package Quantity
160
Packaging
Tray
Power Dissipation
50mW
Power Supply
5V
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Type
Analog, Digital
Termination
SMD/SMT
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD2S1200YSTZ Datasheet
Download the complete datasheet for Analog Devices AD2S1200YSTZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

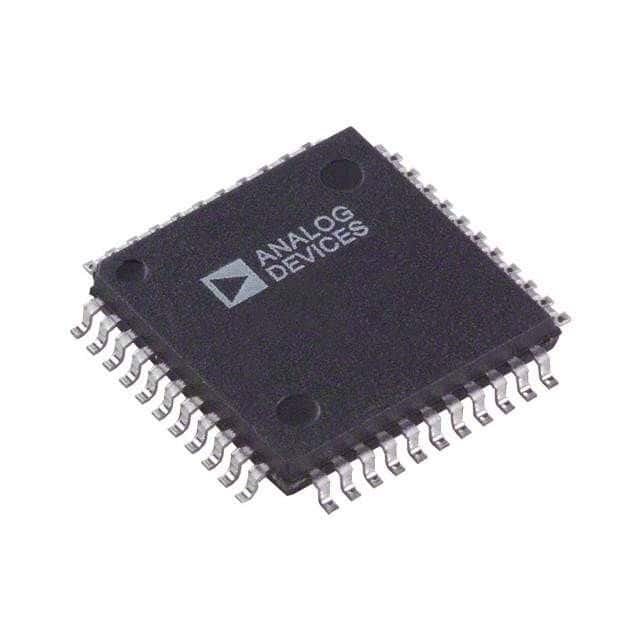

Product Images
