Precision instrumentation amplifier featuring a 2MHz -3dB bandwidth and 40MHz gain bandwidth product. Offers a 74dB common mode rejection ratio and 10V/µs slew rate. This single-channel IC operates with dual supply voltages from 5V to 18V, drawing a maximum of 5mA. Designed for through-hole mounting in a CDIP package with gold contact plating.
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD521KDZ technical specifications.
General
-3db Bandwidth
2MHz
Amplifier Type
INSTRUMENTATION AMPLIFIER
Bandwidth
2MHz
Package/Case
CDIP
Common Mode Rejection Ratio
74dB
Contact Plating
Gold
Gain Bandwidth Product
40MHz
Height
3.56mm
Input Bias Current
40nA
Input Offset Voltage (Vos)
1.5mV
Input Resistance
10MR
Lead Free
Contains Lead
Length
19.43mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
5mA
Mount
Through Hole
Nominal Supply Current
5mA
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
5mA
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Unity Gain Bandwidth Product
40MHz
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD521KDZ Datasheet
Download the complete datasheet for Analog Devices AD521KDZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

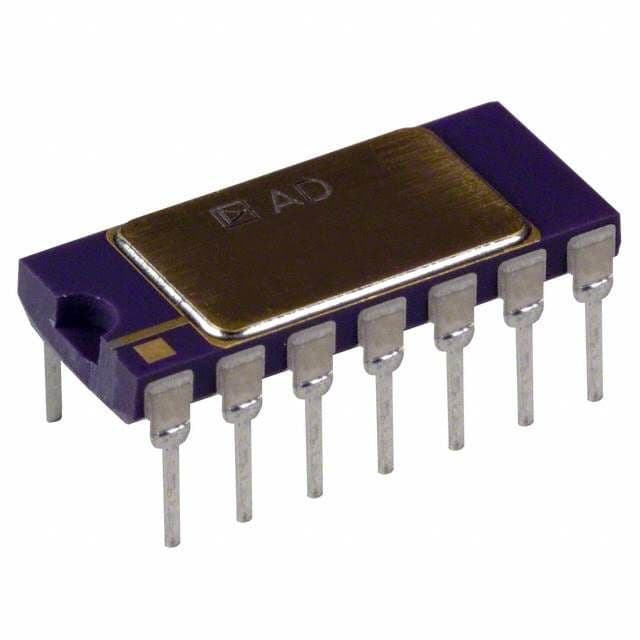

Product Images
