32-channel, 14-bit bipolar voltage-output digital-to-analog converter (DAC) with a 45 kS/s conversion rate. Features SPI, serial, and parallel interfaces, with a 22 µs settling time. Operates with a supply voltage range of 8V to 16.5V and offers a voltage output from 0 µV to 29V. Packaged in BGA with copper, tin, and silver plating, this RoHS compliant component is supplied on tape and reel.
PackageBGA
Power280mW
Quick Jump:
Technical Specifications
Analog Devices AD5532ABCZ-1REEL technical specifications.
General
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Conversion Rate
45KS/s
Differential Output
No
Interface
SPI, Serial, Parallel, 3-WIRE
Lead Free
Contains Lead
Max Input Voltage
3.15V
Min Input Voltage
2.85V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
29V
Min Output Voltage
0uV
Max Power Dissipation
623mW
Max Supply Voltage
16.5V
Min Supply Voltage
8V
Number of Bits
14
Number of Channels
32
Number of Converters
34
Number of D/A Converters
32
Number of DAC Channels
32
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
280mW
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
45KS/s
Settling Time
22us
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5532ABCZ-1REEL Datasheet
Download the complete datasheet for Analog Devices AD5532ABCZ-1REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

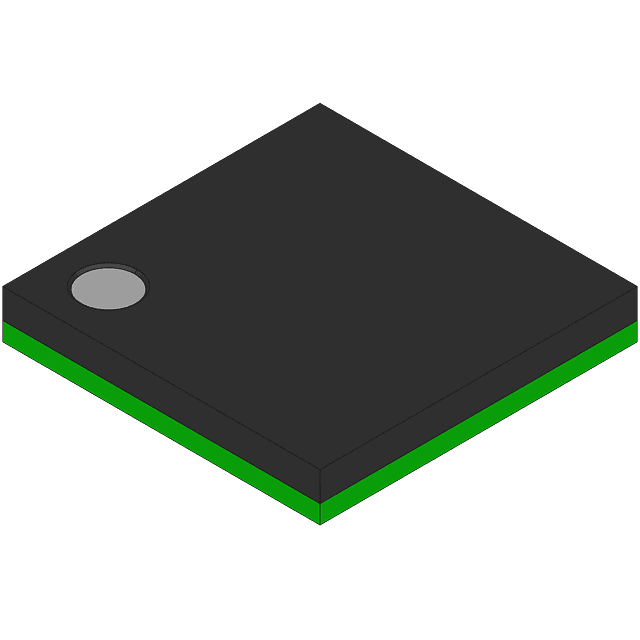

Product Images
