16-bit, unipolar voltage-output digital-to-analog converter (DAC) with a 1MS/s conversion rate. Features SPI serial interface, 1LSB integral nonlinearity, and 0.5LSB differential nonlinearity. Operates from a 2.7V to 5.5V supply, offering a 0µV to 5V output voltage range. Includes 1µs settling time and 92dB signal-to-noise ratio. Packaged in an 8-lead LFCSP with tin-matte contact plating.
PackageSOP
Current125uA
Quick Jump:
Technical Specifications
Analog Devices AD5541ABCPZ-1-RL7 technical specifications.
General
Package/Case
SOP
Contact Plating
Tin, Matte
Conversion Rate
1MS/s
Differential Nonlinearity
0.5LSB
Differential Output
No
Full Scale Error
4LSB
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
5V
Min Output Voltage
0uV
Max Power Dissipation
600uW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
16
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
1MS/s
Settling Time
1us
Signal to Noise Ratio (SNR)
92dB
Slew Rate
17V/µs
Supply Current
125uA
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5541ABCPZ-1-RL7 Datasheet
Download the complete datasheet for Analog Devices AD5541ABCPZ-1-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

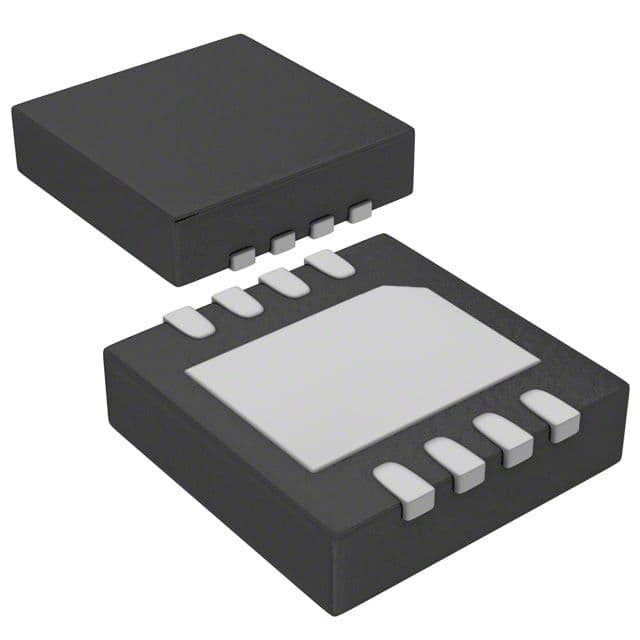

Product Images
