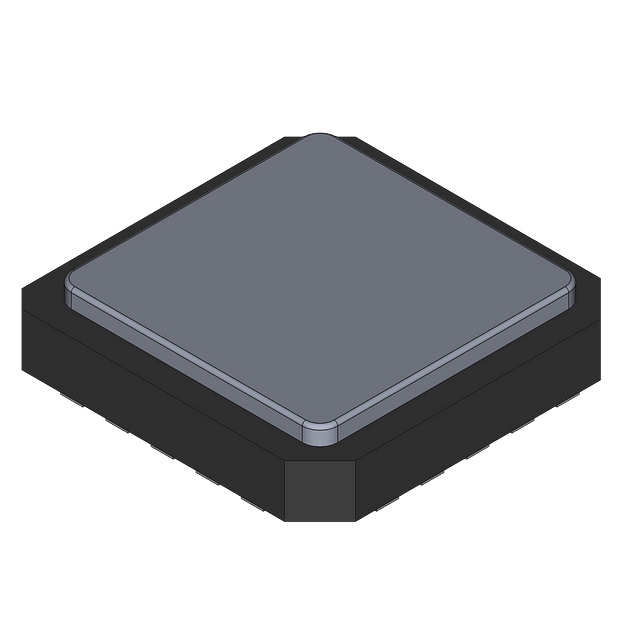

Voltage-output 8-bit digital-to-analog converter featuring a precision output amplifier and full microprocessor interface. Offers 1LSB full-scale error and 0.375LSB integral nonlinearity. Operates with a parallel interface, unipolar output polarity, and a voltage output range from 2.56V to 10V. Encased in an LCC package with tin/lead contact plating, this converter supports a wide operating temperature range of -55°C to 125°C and a maximum sampling rate of 1.25MS/s.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD558TE/883B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LCC |
| Contact Plating | Tin, Lead |
| Full Scale Error | 1LSB |
| Integral Nonlinearity (INL) | 0.375LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 10V |
| Min Output Voltage | 2.56V |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 4.5V |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 54 |
| Packaging | Rail/Tube |
| Power Dissipation | 375mW |
| Resolution | 8b |
| RoHS Compliant | No |
| Sampling Rate | 1.25MS/s |
| Series | AD558 |
| Settling Time | 800ns |
| RoHS | Not Compliant |
Download the complete datasheet for Analog Devices AD558TE/883B to view detailed technical specifications.
