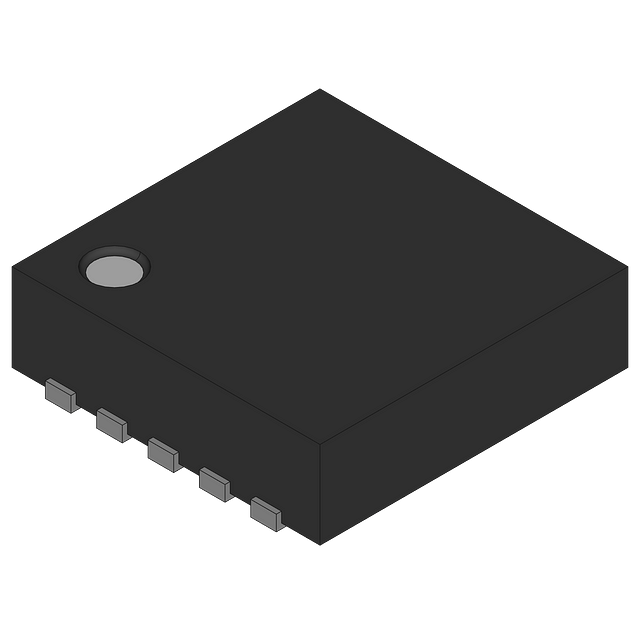

Dual 14-bit Digital-to-Analog Converter (DAC) with a 285 kS/s conversion rate. Features a 2-wire I2C serial interface and a unipolar voltage output. Integral nonlinearity is 4 LSB, with a settling time of 5 µs. Operates from a 2.7V to 5.5V supply, with a maximum power dissipation of 6.3mW. Includes an on-chip reference with 5 ppm/°C stability. Packaged in LFCSP EP with tin-matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD5647RBCPZ-R2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 285KS/s |
| Differential Output | No |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | Serial, I2C, 2-Wire |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5.75mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 14 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of D/A Converters | 2 |
| Number of DAC Channels | 2 |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 6.3mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 285KS/s |
| Series | nanoDAC® |
| Settling Time | 5us |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD5647RBCPZ-R2 to view detailed technical specifications.
