Octal, 16-bit voltage output digital-to-analog converter (DAC) with a 95 kS/s conversion rate. Features an SPI serial interface and a 5 ppm/°C on-chip voltage reference. Offers a 16 LSB integral nonlinearity and a 2.5 µs settling time. Operates from a 2.7V to 5.5V single supply, with a voltage output range from 0 µV to 5.5V. Surface mount package, supplied on tape and reel.
MountingSurface Mount
Power12.4mW
Quick Jump:
Technical Specifications
Analog Devices AD5668BCBZ-1-RL7 technical specifications.
General
Conversion Rate
95KS/s
Differential Output
No
Integral Nonlinearity (INL)
16LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
750mV
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Voltage
5.5V
Min Output Voltage
0uV
Max Power Dissipation
2.15mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
16
Number of Channels
8
Number of Converters
8
Number of D/A Converters
8
Number of DAC Channels
8
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
12.4mW
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
95KS/s
Series
denseDAC
Settling Time
2.5us
Slew Rate
1.5V/µs
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5668BCBZ-1-RL7 Datasheet
Download the complete datasheet for Analog Devices AD5668BCBZ-1-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

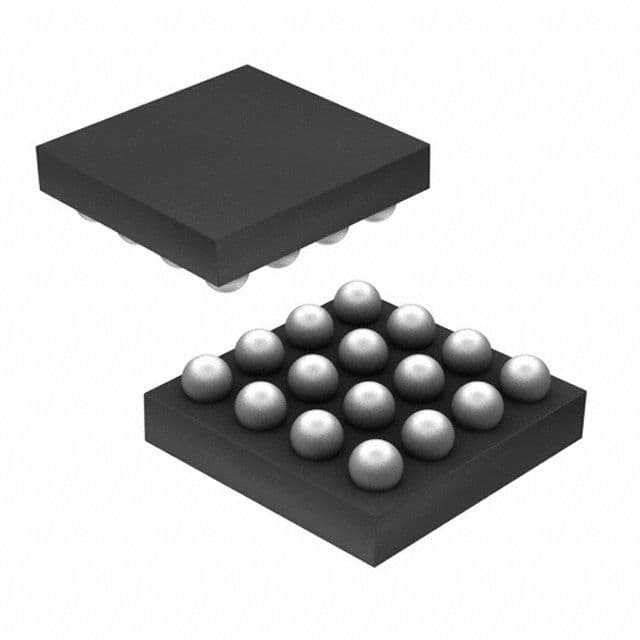

Product Images
