16-bit monotonic voltage output digital-to-analog converter (DAC) with a single channel. Features a parallel interface and bipolar/unipolar output polarity. Operates with dual supply voltages from 10.8V to 13.2V. Housed in a PDIP package for through-hole mounting, with tin/lead contact plating. Maximum power dissipation is 1W, and settling time is 6µs.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD569KN technical specifications.
General
Package/Case
PDIP
Contact Plating
Tin, Lead
Differential Output
No
Dual Supply Voltage
12V
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
13.2V
Min Dual Supply Voltage
10.8V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
13.2V
Min Supply Voltage
10.8V
Mount
Through Hole
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
1
Packaging
Rail/Tube
Resolution
16b
RoHS Compliant
No
Settling Time
6us
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD569KN Datasheet
Download the complete datasheet for Analog Devices AD569KN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

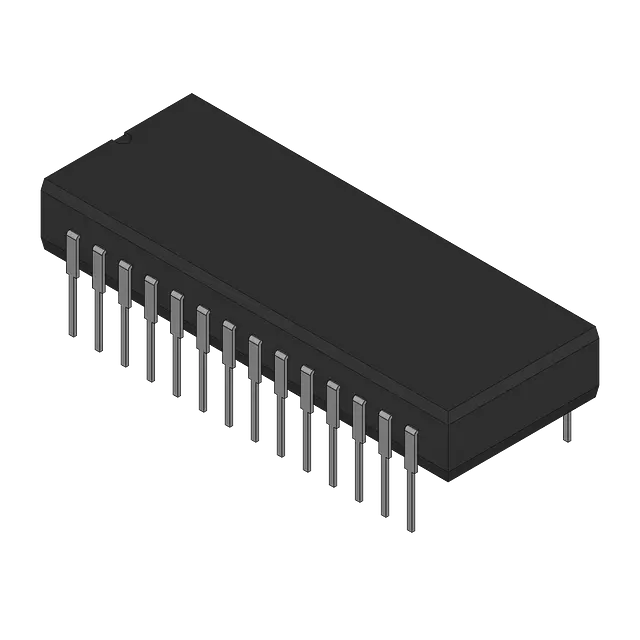

Product Images
