20-bit, 1 ppm voltage output digital-to-analog converter (DAC) with ±1 LSB integral nonlinearity (INL) and 4 LSB differential nonlinearity (DN). Features a 1 MS/s conversion rate, 1 µs settling time, and 50 V/µs slew rate. Operates from a 2.7V to 5.5V supply voltage with a dual supply voltage of ±16.5V. Offers SPI serial interface and bipolar voltage output. Packaged in a 20-bit SOP with tin, matte contact plating.
PackageSOP
Current4.2mA
Power126.3mW
Quick Jump:
Technical Specifications
Analog Devices AD5791ARUZ technical specifications.
General
Package/Case
SOP
Contact Plating
Tin, Matte
Conversion Rate
1MS/s
Differential Output
No
Dual Supply Voltage
16.5V
Full Scale Error
21LSB
Height
1.05mm
Integral Nonlinearity (INL)
4LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Length
6.6mm
Max Input Voltage
20V
Min Input Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
20V
Min Output Voltage
5V
Max Power Dissipation
126.3mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
20
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Output Polarity
Bipolar
Output Type
Voltage
Package Quantity
1
Packaging
Rail/Tube
Power Dissipation
126.3mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
20b
RoHS Compliant
Yes
Sampling Rate
1MS/s
Settling Time
1us
Slew Rate
50V/µs
Supply Current
4.2mA
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD5791ARUZ Datasheet
Download the complete datasheet for Analog Devices AD5791ARUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

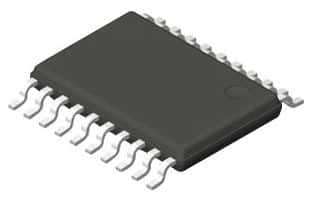

Product Images
