High precision 2.5 V IC voltage reference, series type, offering a stable 2.5V output voltage. Features a wide input voltage range from 4.5V to 40V and a maximum output current of 10mA. Operates with a nominal supply current of 1.5mA, housed in a TO-52 package. Suitable for applications requiring operation across a broad temperature range of -55°C to 125°C.
PackageTO-52
Current Rating1.5mA
Quick Jump:
Technical Specifications
Analog Devices AD580LH technical specifications.
General
Package/Case
TO-52
Current Rating
1.5mA
Height
3.81mm
Lead Free
Contains Lead
Length
5.84mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
2.5V
Nominal Supply Current
1.5mA
Number of Channels
1
Operating Supply Current
1.5mA
Output Current
10mA
Output Voltage
2.5V
Package Quantity
1
Packaging
Rail/Tube
Quiescent Current
1.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
2.5V
RoHS Compliant
Yes
Width
5.84mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD580LH Datasheet
Download the complete datasheet for Analog Devices AD580LH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

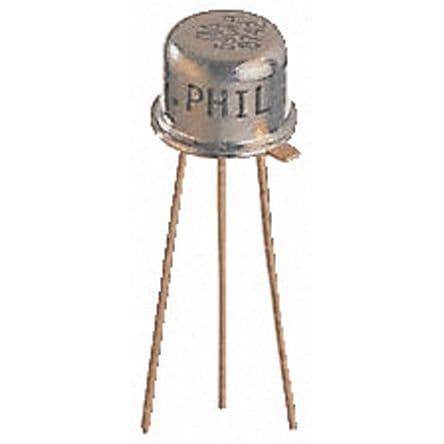

Product Images
