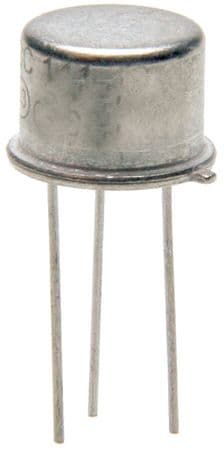

AD581KH

10V Voltage Reference IC, 10mA, 0.1% Tol, TO-52, TH

High precision 10V voltage reference IC, featuring a fixed 10V output with a tight 0.1% tolerance. This component operates with a minimum input voltage of 12V and a maximum of 40V, supporting a maximum output current of 10mA. Housed in a TO-52 package, it offers a wide operating temperature range from -55°C to 125°C and a maximum power dissipation of 600mW. Designed for through-hole mounting, it has a typical supply current of 750µA.

PackageTO-52

Current750uA

MountingThrough Hole

Quick Jump:

Technical Specifications

Analog Devices AD581KH technical specifications.

General

Package/Case	TO-52
Height	4.7mm
Lead Free	Contains Lead
Length	9.4mm
Max Input Voltage	40V
Min Input Voltage	12V
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Output Current	10mA
Max Output Voltage	10V
Min Output Voltage	10V
Max Power Dissipation	600mW
Mount	Through Hole
Operating Supply Current	1mA
Output Current	10mA
Output Type	Fixed
Output Voltage	10V
Package Quantity	100
Packaging	Rail/Tube
Radiation Hardening	No
Reach SVHC Compliant	No
Reference Type	Series
Reference Voltage	10V
RoHS Compliant	No
Supply Current	750uA
Termination	Through Hole
Tolerance	0.1%
Width	9.4mm
