Analog IC temperature transducer with a current output proportional to absolute temperature. Features a wide operating temperature range from -55°C to 150°C, powered by a supply voltage between 4V and 30V. Packaged in a TO-52 through-hole mount with gold contact plating. This RoHS compliant component offers an analog interface and a typical output current of 298.2µA.
PackageTO-52
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD590JH technical specifications.
General
Package/Case
TO-52
Contact Plating
Gold
Height
3.81mm
Interface
Analog
Lead Free
Contains Lead
Length
5.84mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Supply Voltage
30V
Min Supply Voltage
4V
Mount
Through Hole
Output Current
298.2uA
Output Type
Analog
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Width
5.84mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD590JH Datasheet
Download the complete datasheet for Analog Devices AD590JH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

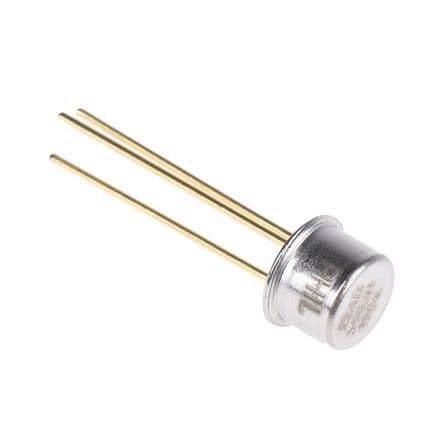

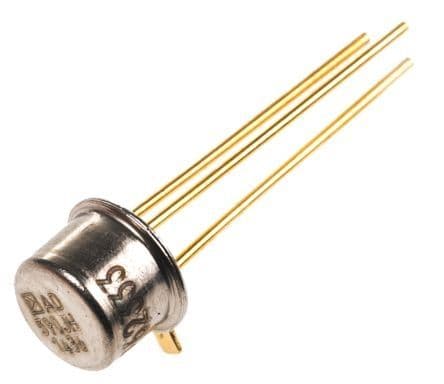

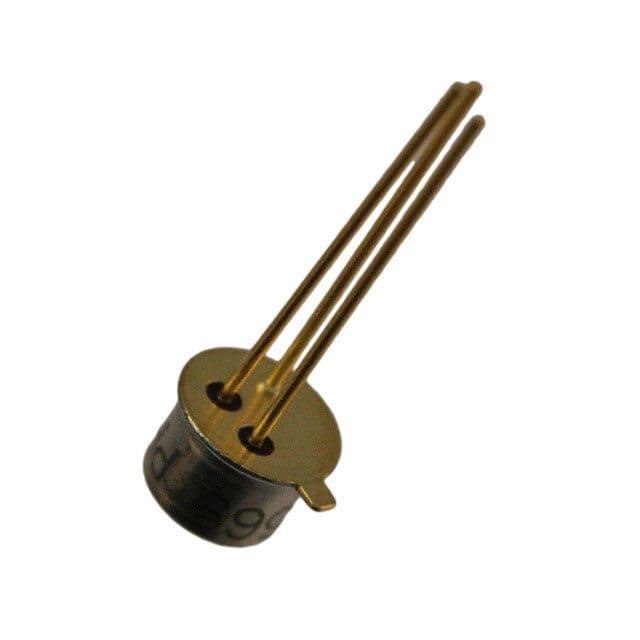

Product Images
