Instrumentation amplifier featuring a 1MHz -3dB bandwidth and 800kHz bandwidth, with a gain bandwidth product of 120kHz. Offers a high Common Mode Rejection Ratio of 93dB and Power Supply Rejection Ratio of 140dB. Designed for surface mounting in a SOIC package, this single-channel amplifier operates with dual supply voltages from 2.3V to 15V, with a maximum of 18V. Key specifications include a low input bias current of 500pA, 10GR input resistance, and a slew rate of 1.2V/µs.
PackageSOIC
Current900uA
MountingSurface Mount
Power650mW
Quick Jump:
Technical Specifications
Analog Devices AD620BRZ technical specifications.
General
-3db Bandwidth
1MHz
Bandwidth
800kHz
Package/Case
SOIC
Common Mode Rejection Ratio
93dB
Dual Supply Voltage
15V
Gain Bandwidth Product
120kHz
Height
1.5mm
Input Bias Current
500pA
Input Offset Voltage (Vos)
30mV
Input Resistance
10GR
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
650mW
Max Supply Current
1.3mA
Max Supply Voltage
18V
Min Supply Voltage
4.6V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.3mA
Output Current per Channel
18mA
Package Quantity
98
Packaging
Rail/Tube
Power Dissipation
650mW
Power Supply Rejection Ratio (PSRR)
140dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
15us
Slew Rate
1.2V/µs
Supply Current
900uA
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD620BRZ Datasheet
Download the complete datasheet for Analog Devices AD620BRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

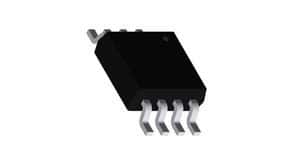

Product Images
