Monolithic 12-bit quad digital-to-analog converter (DAC) featuring a parallel interface and a conversion rate of 125 kS/s. Offers 12-bit resolution with 1 LSB integral nonlinearity and 7 LSB full-scale error. Operates with dual supply voltages from 11.4V to 16.5V, supporting bipolar and unipolar output polarity. Packaged in a PLCC with tin, matte contact plating, this component has a maximum power dissipation of 525mW and a supply current of 12mA.
PackagePLCC
Current12mA
Power525mW
Quick Jump:
Technical Specifications
Analog Devices AD664JPZ technical specifications.
General
Package/Case
PLCC
Contact Plating
Tin, Matte
Conversion Rate
125KS/s
Differential Output
No
Dual Supply Voltage
15V
Full Scale Error
7LSB
Height
3.68mm
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Length
16.66mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
11.4V
Max Input Voltage
13V
Min Input Voltage
-13V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
26V
Min Output Voltage
0uV
Number of Bits
12
Number of Channels
4
Number of D/A Converters
4
Number of DAC Channels
4
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
27
Packaging
Rail/Tube
Power Dissipation
525mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
125KS/s
Settling Time
8us
Supply Current
12mA
Width
16.66mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD664JPZ Datasheet
Download the complete datasheet for Analog Devices AD664JPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

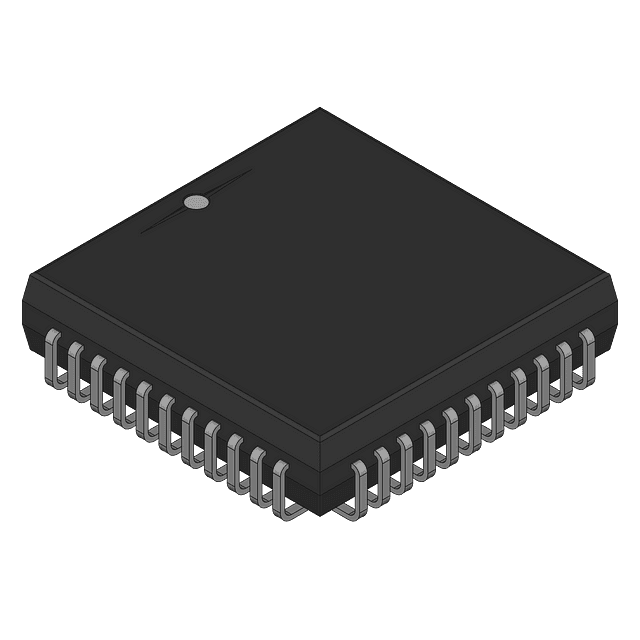

Product Images
