16-bit parallel sampling Analog-to-Digital Converter (ADC) with a 100 kSPS sampling rate. Features a single-ended input type and bipolar polarity, operating with a dual supply voltage range of 11.4V to 12.6V. Offers 90dB Signal-to-Noise Ratio (SNR) and 2 LSB Integral Nonlinearity (INL). Packaged in a D case with tin/lead contact plating, this through-hole mount component has a maximum power dissipation of 480mW and an operating temperature range of -40°C to 85°C.
PackageD
MountingThrough Hole
PolarityBipolar
Power480mW
Quick Jump:
Technical Specifications
Analog Devices AD676BD technical specifications.
General
Package/Case
D
Contact Plating
Tin, Lead
Dual Supply Voltage
12V
Input Capacitance
50pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
12.6V
Min Dual Supply Voltage
11.4V
Max Input Voltage
10V
Min Input Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
480mW
Mount
Through Hole
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Package Quantity
1
Packaging
Rail/Tube
Polarity
Bipolar
Power Dissipation
480mW
Resolution
16b
RoHS Compliant
No
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
90dB
Supply Type
Dual
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD676BD Datasheet
Download the complete datasheet for Analog Devices AD676BD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

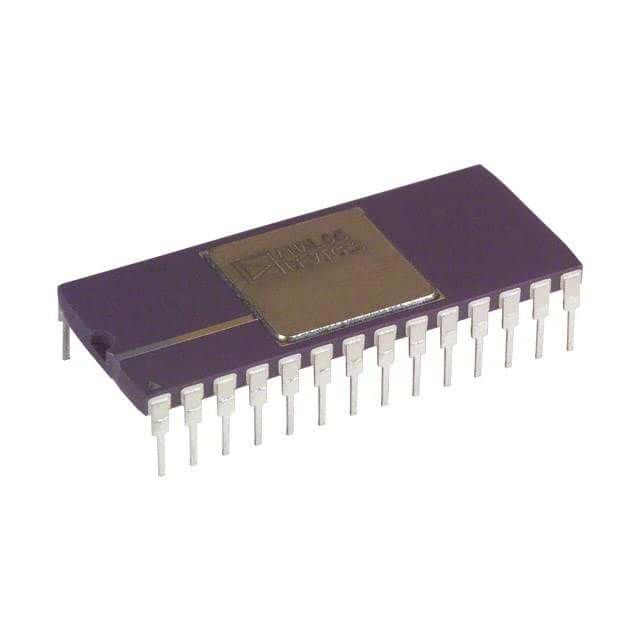

Product Images
