16-bit, 100 kSPS sampling Analog-to-Digital Converter (ADC) with a serial SPI interface. Features a single-ended input type, bipolar polarity, and a dual supply voltage range of 11.4V to 12.6V. Offers a full-scale error of 4 LSB and integral nonlinearity of 2 LSB, with a signal-to-noise ratio of 92dB. Housed in a D package for through-hole mounting, operating from -55°C to 125°C.
PackageD
MountingThrough Hole
PolarityBipolar
Power450mW
Quick Jump:
Technical Specifications
Analog Devices AD677BD technical specifications.
General
Package/Case
D
Contact Plating
Tin, Lead
Dual Supply Voltage
12V
Full Scale Error
4LSB
Input Capacitance
50pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
Serial, SPI
Lead Free
Contains Lead
Max Dual Supply Voltage
12.6V
Min Dual Supply Voltage
11.4V
Max Input Voltage
10V
Min Input Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
630mW
Mount
Through Hole
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
1
Packaging
Rail/Tube
Polarity
Bipolar
Power Consumption
450mW
Power Dissipation
630mW
Radiation Hardening
No
Resolution
16b
RoHS Compliant
No
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
92dB
Supply Type
Dual
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD677BD Datasheet
Download the complete datasheet for Analog Devices AD677BD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

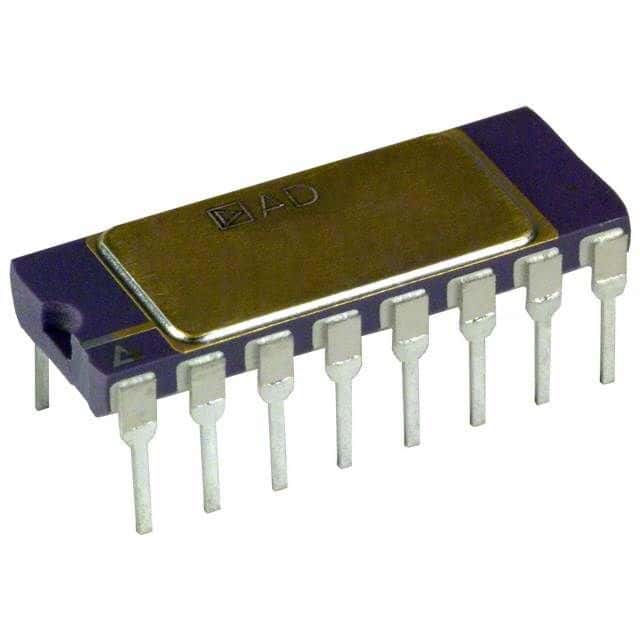

Product Images
