8-bit, unipolar voltage output digital-to-analog converter (DAC) featuring a single channel and parallel interface. Achieves a 143 kS/s conversion rate with a 7 µs settling time and 2.5 V/µs slew rate. Offers a full-scale error of 1.5 LSB and integral nonlinearity of 1 LSB. Operates with a dual supply voltage of 15V, supporting a range from 11.4V to 16.5V. Housed in a PLCC package with tin, matte contact plating, and a maximum power dissipation of 75mW.
PackagePLCC
Power75mW
Quick Jump:
Technical Specifications
Analog Devices AD7224KPZ technical specifications.
General
Package/Case
PLCC
Contact Plating
Tin, Matte
Conversion Rate
143KS/s
Differential Output
No
Dual Supply Voltage
15V
Full Scale Error
1.5LSB
Height
3.68mm
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Length
9.04mm
Max Input Voltage
11V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
11V
Min Output Voltage
2V
Max Power Dissipation
75mW
Max Supply Voltage
16.5V
Min Supply Voltage
11.4V
Number of Bits
8
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
15V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
49
Packaging
Rail/Tube
Power Dissipation
75mW
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
143KS/s
Settling Time
7us
Slew Rate
2.5V/µs
Width
9.04mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7224KPZ Datasheet
Download the complete datasheet for Analog Devices AD7224KPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

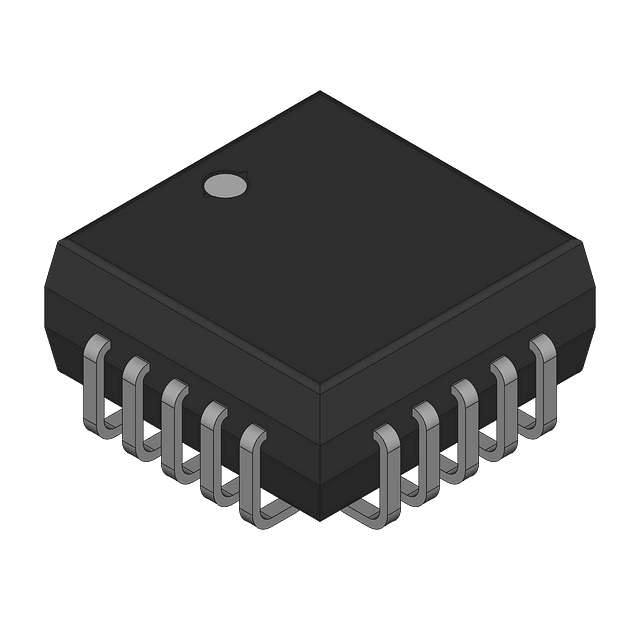

Product Images
