8-Bit LC2MOS Digital-to-Analog Converter (DAC) with integrated output amplifiers. Features a unipolar voltage output and a parallel interface. Achieves a 143 kS/s conversion rate with a settling time of 7 µs and a slew rate of 2.5 V/µs. Offers 1 LSB integral nonlinearity and 1.5 LSB full-scale error. Operates with a 15V supply voltage and a temperature range of -55°C to 125°C. Packaged in SOIC W with Tin/Lead contact plating.
PackageSOIC W
Power75mW
Quick Jump:
Technical Specifications
Analog Devices AD7224KR-18 technical specifications.
General
Package/Case
SOIC W
Contact Plating
Tin, Lead
Conversion Rate
143KS/s
Differential Output
No
Full Scale Error
1.5LSB
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
11V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
11V
Min Output Voltage
2V
Max Supply Voltage
15.75V
Min Supply Voltage
14.25V
Number of Bits
8
Number of Channels
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
15V
Output Polarity
Unipolar
Output Type
Voltage
Packaging
Rail/Tube
Power Dissipation
75mW
Radiation Hardening
No
Resolution
8b
RoHS Compliant
No
Sampling Rate
143KS/s
Settling Time
7us
Slew Rate
2.5V/µs
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD7224KR-18 Datasheet
Download the complete datasheet for Analog Devices AD7224KR-18 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

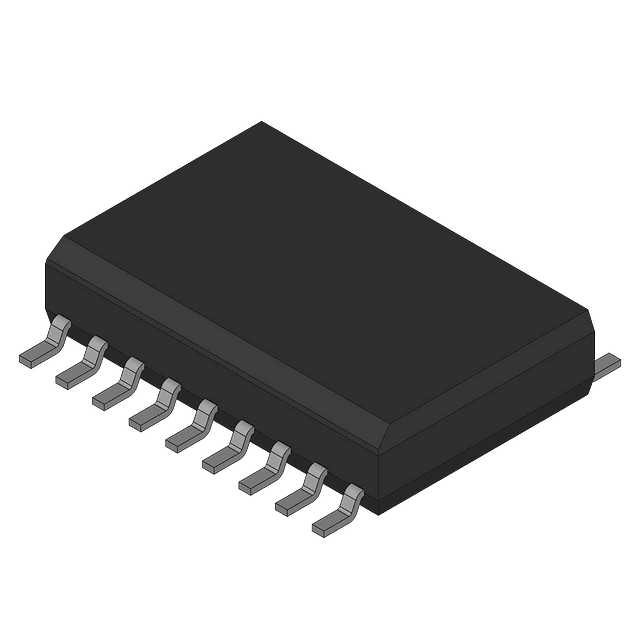

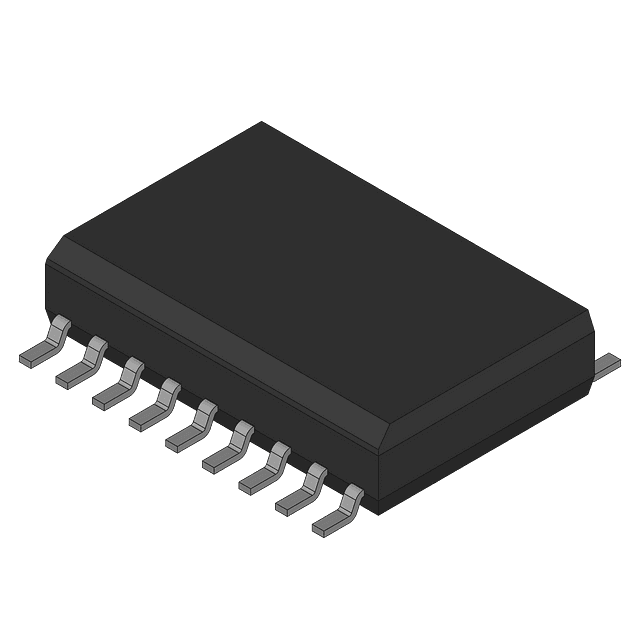

Product Images
