The AD724JRZ is a 3-channel video processing IC with a bandwidth of 5MHz. It is packaged in a SOIC package and is designed for surface mount applications. The IC has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It is not RoHS compliant due to containing lead, but is compliant with other environmental regulations. The AD724JRZ has a maximum power dissipation of 800mW and a maximum supply voltage of 5.25V.
PackageSOIC
Current33mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD724JRZ technical specifications.
General
| Bandwidth | 5MHz |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Height | 2.35mm |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Operating Supply Current | 42mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 33mA |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD724JRZ Datasheet
Download the complete datasheet for Analog Devices AD724JRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

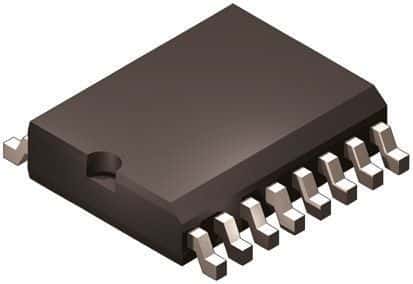

Product Images
