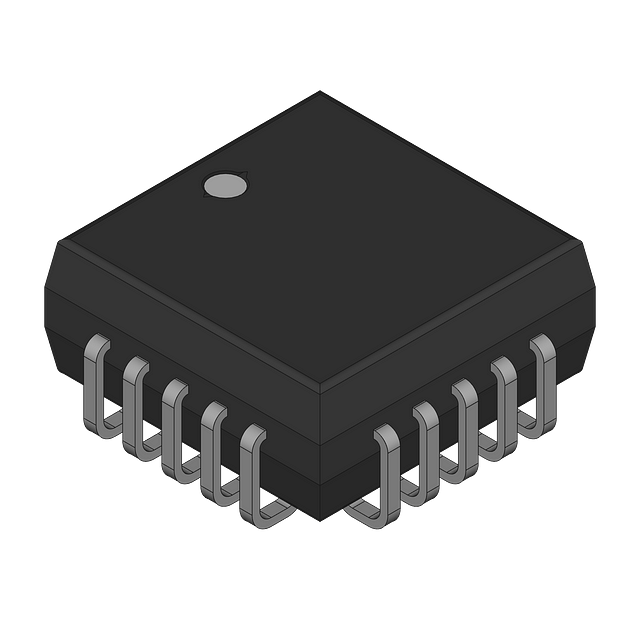

14-bit Digital-to-Analog Converter (DAC) with a parallel interface. Features a 14-bit resolution and a sampling rate of 667 kS/s. Offers a bipolar and unipolar output polarity with a full-scale error of 4 LSB and integral nonlinearity of 1 LSB. Operates with dual supply voltages up to ±15.75V and a minimum supply voltage of 11.4V. Housed in a 20-pin PLCC package, this single-channel DAC has a settling time of 1.5 µs and a maximum power dissipation of 45mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7534KPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PLCC |
| Conversion Rate | 667KS/s |
| Differential Output | No |
| Dual Supply Voltage | 15.75V |
| Full Scale Error | 4LSB |
| Height | 4.57mm |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 9.04mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 45mW |
| Max Supply Voltage | 15.75V |
| Min Supply Voltage | 11.4V |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Bipolar, Unipolar |
| Package Quantity | 49 |
| Packaging | Rail/Tube |
| Power Dissipation | 45mW |
| Radiation Hardening | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 667KS/s |
| Settling Time | 1.5us |
| Width | 9.04mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD7534KPZ to view detailed technical specifications.
