24-bit Analog-to-Digital Converter (ADC) featuring a 109 dB Signal-to-Noise Ratio (SNR) and a sampling rate of up to 128 kSPS. This unipolar ADC offers a differential input type and operates from a 2.5V supply voltage. It utilizes a 3-wire SPI serial interface for communication and is housed in a 24-lead TSSOP package with tin, matte contact plating. Power consumption is rated at 8.5 mW, with a maximum power dissipation of 18 mW.
PackageTSSOP
PolarityUnipolar
Power15mW
Quick Jump:
Technical Specifications
Analog Devices AD7766BRUZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Height
1.05mm
Input Capacitance
22pF
Input Type
DIFFERENTIAL
Interface
Serial, 3-WIRE, SPI
Lead Free
Contains Lead
Length
5mm
Max Input Voltage
5V
Min Input Voltage
2.4V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
18mW
Max Supply Voltage
2.625V
Min Supply Voltage
2.375V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
24
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
2.5V
Package Quantity
1
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
15mW
Power Dissipation
18mW
Power Supply
2.5V
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
128KS/s
Signal to Noise Ratio (SNR)
108.5dB
Supply Type
Analog, Digital
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7766BRUZ Datasheet
Download the complete datasheet for Analog Devices AD7766BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

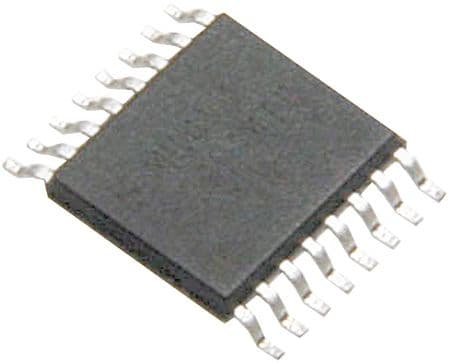

Product Images
