14-bit Analog-to-Digital Converter (ADC) with a 128 kS/s conversion rate. Features a single-ended input and parallel interface. Operates with a dual supply voltage range of 11.4V to 12.6V, with a maximum dual supply of 12V. Housed in a CDIP package with gold contact plating, suitable for through-hole mounting. Offers bipolar and unipolar polarity with an integral nonlinearity of 2 LSB.
PackageCDIP
MountingThrough Hole
PolarityBipolar, Unipolar
Power560mW
Quick Jump:
Technical Specifications
Analog Devices AD779JDZ technical specifications.
General
Package/Case
CDIP
Contact Plating
Gold
Conversion Rate
128KS/s
Dual Supply Voltage
12V
Height
4.2mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Contains Lead
Length
37.85mm
Max Dual Supply Voltage
12.6V
Min Dual Supply Voltage
11.4V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
12V
Mount
Through Hole
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
14
Number of Converters
1
Number of Inputs
1
Package Quantity
13
Packaging
Rail/Tube
Polarity
Bipolar, Unipolar
Power Dissipation
560mW
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
No
Sampling Rate
128KS/s
Supply Type
Dual
Width
15.49mm
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD779JDZ Datasheet
Download the complete datasheet for Analog Devices AD779JDZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

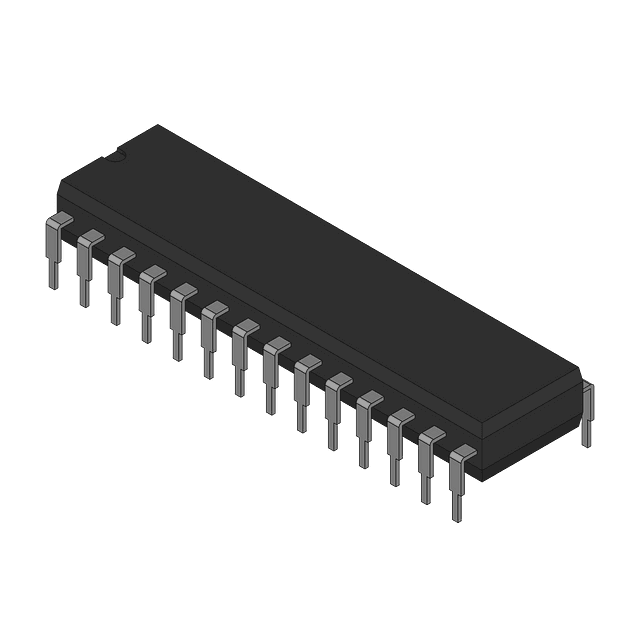

Product Images
