Dual 12-bit Digital-to-Analog Converter (DAC) IC with LC2MOS technology and an (8 + 4) loading structure. Features a 250 kS/s conversion rate, parallel interface, and bipolar/unipolar voltage output. Operates with a dual supply voltage range of ±14.25V to ±15.75V, offering a full-scale error of 3 LSB and integral nonlinearity of 0.5 LSB. Housed in a PDIP package with tin, matte contact plating.
PackagePDIP
Power210mW
Quick Jump:
Technical Specifications
Analog Devices AD7837BNZ technical specifications.
General
Package/Case
PDIP
Contact Plating
Tin, Matte
Conversion Rate
250KS/s
Differential Output
No
Dual Supply Voltage
15V
Full Scale Error
3LSB
Height
3.3mm
Integral Nonlinearity (INL)
0.5LSB
Interface
Parallel
Lead Free
Contains Lead
Length
31.19mm
Max Dual Supply Voltage
15.75V
Min Dual Supply Voltage
14.25V
Max Input Voltage
10V
Min Input Voltage
-10V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
20V
Min Output Voltage
0uV
Max Power Dissipation
210mW
Max Supply Voltage
15.75V
Min Supply Voltage
14.25V
Nominal Supply Current
5mA
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
15
Packaging
Rail/Tube
Power Dissipation
210mW
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
250KS/s
Settling Time
3us
Slew Rate
11V/µs
Width
6.61mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7837BNZ Datasheet
Download the complete datasheet for Analog Devices AD7837BNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

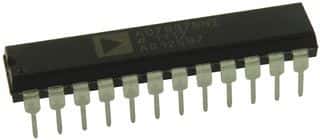

Product Images
