12-bit, 8-channel serial data acquisition system featuring single-ended analog inputs. Achieves 1LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL) with a full-scale error of 2.5LSB. Operates from a single 5V supply, supporting SPI and serial interfaces. Offers a 70dB Signal to Noise Ratio (SNR) and a sampling rate of 117KS/s. Housed in a Q package with Tin/Lead contact plating, suitable for operation between -55°C and 125°C.
PackageQ
PolarityUnipolar
Power30mW
Quick Jump:
Technical Specifications
Analog Devices AD7890SQ-4 technical specifications.
General
Package/Case
Q
Contact Plating
Tin, Lead
Differential Nonlinearity
1LSB
Full Scale Error
2.5LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Max Input Voltage
2.625V
Min Input Voltage
2.375V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
50mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Channels
8
Number of Converters
1
Operating Supply Voltage
5V
Output Type
TTL
Package Quantity
1
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
30mW
Power Dissipation
50mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
117KS/s
Signal to Noise Ratio (SNR)
70dB
Supply Type
Single
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD7890SQ-4 Datasheet
Download the complete datasheet for Analog Devices AD7890SQ-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

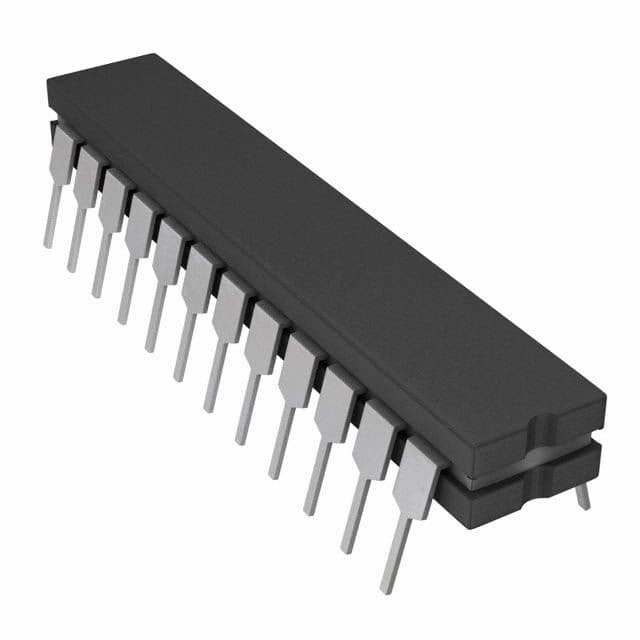

Product Images
