8-Bit, 4-Channel Analog-to-Digital Converter (ADC) with a 1 MSPS sampling rate. Features SPI interface, single-ended input type, and a unipolar polarity. Offers 0.2 LSB differential nonlinearity and integral nonlinearity, with a full-scale error of 0.2 LSB. Operates with a 5V supply voltage and a maximum power dissipation of 13.5mW. Packaged in a 16-lead TSSOP with tin, matte contact plating.
PackageTSSOP
PolarityUnipolar
Power13.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7904BRUZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
0.2LSB
Full Scale Error
0.2LSB
Height
1.05mm
Input Capacitance
20pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
0.2LSB
Interface
SPI
Lead Free
Contains Lead
Length
5mm
Max Input Voltage
2.525V
Min Input Voltage
2.475V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
13.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Analog Inputs
4
Number of Bits
8
Number of Channels
4
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Operating Supply Voltage
5V
Package Quantity
96
Packaging
Rail/Tube
Polarity
Unipolar
Power Dissipation
13.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
1MS/s
Signal to Noise Ratio (SNR)
49dB
Supply Type
Analog, Digital, Single
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7904BRUZ Datasheet
Download the complete datasheet for Analog Devices AD7904BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

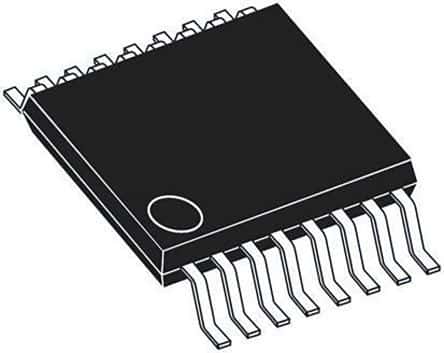

Product Images
