12-bit, 8-channel Analog-to-Digital Converter (ADC) with a 200 kSPS sampling rate. Features single-ended inputs, SPI interface, and a unipolar output. Offers 1LSB integral nonlinearity and 1.5LSB full-scale error. Operates from a 2.7V to 5.25V supply voltage, with a maximum power dissipation of 7.5mW. Packaged in a 20-lead TSSOP with tin-matte contact plating.
PackageTSSOP
PolarityUnipolar
Power7.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7927BRUZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
-0.9LSB
Full Scale Error
1.5LSB
Height
1.05mm
Input Capacitance
20pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Contains Lead
Length
6.5mm
Max Input Voltage
2.525V
Min Input Voltage
2.475V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
7.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Operating Supply Voltage
5V
Package Quantity
75
Packaging
Rail/Tube
Polarity
Unipolar
Power Dissipation
7.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
70dB
Supply Type
Analog, Digital
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7927BRUZ Datasheet
Download the complete datasheet for Analog Devices AD7927BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

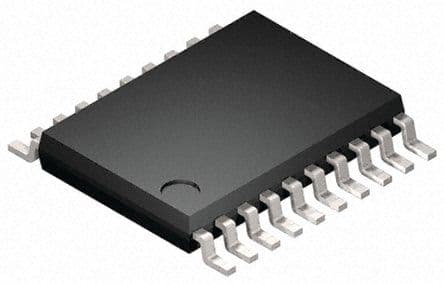

Product Images
