12-bit multiplying digital-to-analog converter (DAC) with a 1.7 MS/s conversion rate. Features a 12-bit resolution and a single DAC channel. Operates with a 5V supply voltage and offers a 600ns settling time. Includes a parallel interface for data input.
PackageN
Quick Jump:
Technical Specifications
Analog Devices AD7948BN technical specifications.
General
Package/Case
N
Contact Plating
Tin, Lead
Conversion Rate
1.7MS/s
Converter Type
GENERAL PURPOSE
Differential Output
No
Full Scale Error
2LSB
Height
3.3mm
Integral Nonlinearity (INL)
0.5LSB
Interface
Parallel
Lead Free
Contains Lead
Length
26.16mm
Max Input Voltage
10V
Min Input Voltage
-10V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
20V
Min Output Voltage
0uV
Max Power Dissipation
25uW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Package Quantity
18
Packaging
Rail/Tube
Radiation Hardening
No
Resolution
12b
RoHS Compliant
No
Sampling Rate
1.7MS/s
Settling Time
600ns
Width
6.35mm
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD7948BN Datasheet
Download the complete datasheet for Analog Devices AD7948BN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

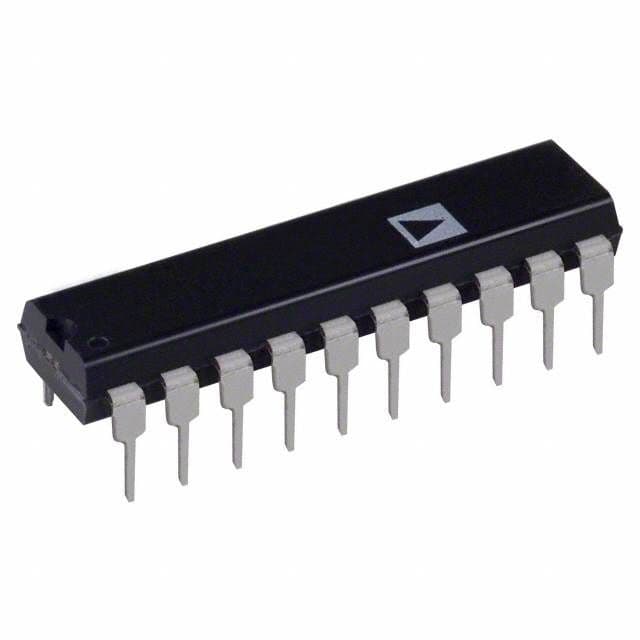

Product Images
