12-bit multiplying digital-to-analog converter (DAC) with a 1.7MS/s conversion rate. Features a 12-bit resolution and a single channel for general-purpose applications. Operates from a 4.5V to 5.5V supply voltage with a typical operating voltage of 5V and a low supply current of 5µA. Offers a 600ns settling time and a full-scale error of 2LSB, with integral nonlinearity (INL) at 0.5LSB. Input is parallel, with an 8-bit byte interface supporting both parallel and serial communication. Packaged in a 18-pin DIP with through-hole termination.
PackageN
Current5uA
Quick Jump:
Technical Specifications
Analog Devices AD7948BNZ technical specifications.
General
| Package/Case | N |
| Contact Plating | Tin, Matte |
| Conversion Rate | 1.7MS/s |
| Converter Type | GENERAL PURPOSE |
| Differential Output | No |
| Full Scale Error | 2LSB |
| Height | 3.3mm |
| Input Type | PARALLEL |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel, Serial |
| Length | 26.16mm |
| Max Input Voltage | 10V |
| Min Input Voltage | -10V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Min Output Voltage | 0uV |
| Max Power Dissipation | 25uW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 1.7MHz |
| Sampling Rate | 1.7MS/s |
| Settling Time | 600ns |
| Supply Current | 5uA |
| Termination | Through Hole |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7948BNZ Datasheet
Download the complete datasheet for Analog Devices AD7948BNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

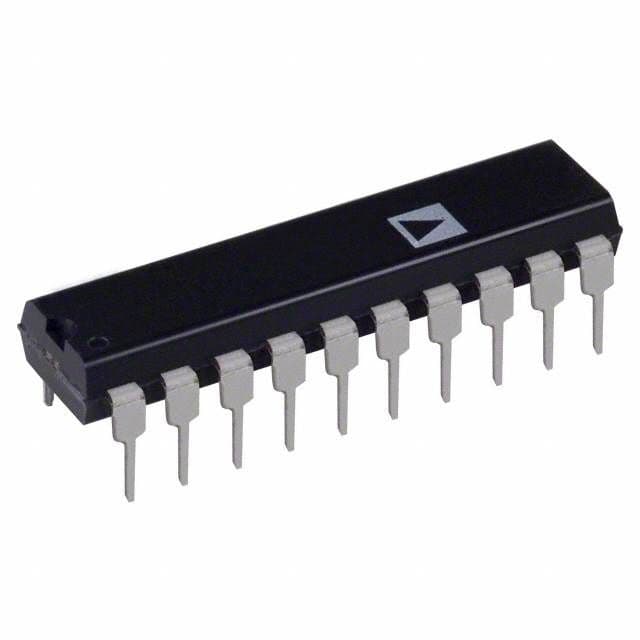

Product Images
