16-bit, 2.5 MSPS Analog-to-Digital Converter (ADC) featuring a single-ended input and SPI interface. This PulSAR® ADC offers a high resolution of 16 bits and a sampling rate of 2.5 MS/s, with a typical power dissipation of 28mW. It operates with a 5V supply voltage and supports input voltages from 2.4V to 5.1V. The device boasts an 88.5dB Signal-to-Noise Ratio (SNR) and operates across a temperature range of -40°C to 85°C. Supplied in tape and reel packaging, this RoHS compliant component is ideal for demanding data acquisition applications.
PolarityUnipolar
Power28mW
Quick Jump:
Technical Specifications
Analog Devices AD7985BCPZ-RL7 technical specifications.
General
Conversion Rate
2.5MS/s
Input Type
SINGLE-ENDED
Interface
SPI
Lead Free
Contains Lead
Max Input Voltage
5.1V
Min Input Voltage
2.4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
33mW
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1500
Packaging
Tape and Reel
Polarity
Unipolar
Power Dissipation
28mW
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
2.5MS/s
Series
PulSAR®
Signal to Noise Ratio (SNR)
88.5dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7985BCPZ-RL7 Datasheet
Download the complete datasheet for Analog Devices AD7985BCPZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

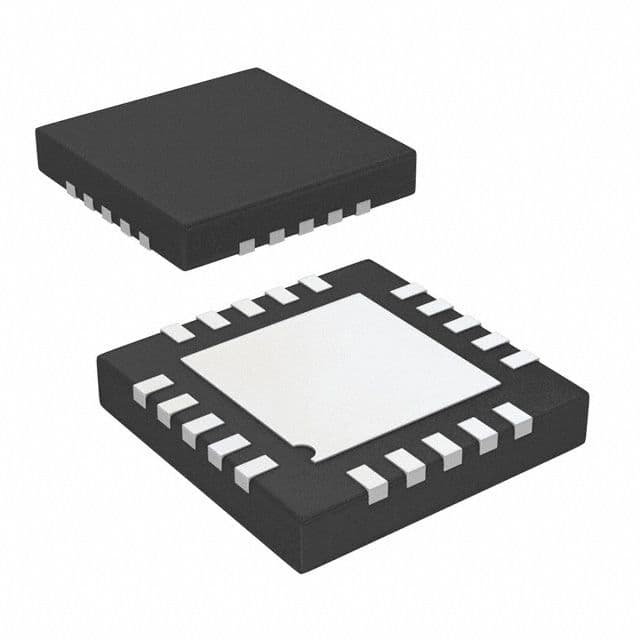

Product Images
