Single, rail-to-rail I/O operational amplifier featuring an 80MHz bandwidth and 35V/µs slew rate. This amplifier operates with a minimum supply voltage of 2.7V and a maximum of 12V, supporting dual supplies up to 5V. Key specifications include a 40MHz gain bandwidth product, 90dB CMRR, and 86dB PSRR. The component is housed in a SOT-23 package and offers a 15mA output current.
PackageSOT-23
Current900uA
Power500mW
Quick Jump:
Technical Specifications
Analog Devices AD8031ARTZ-REEL7 technical specifications.
General
-3db Bandwidth
80MHz
Bandwidth
80MHz
Package/Case
SOT-23
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
5V
Gain Bandwidth Product
40MHz
Input Bias Current
450nA
Input Capacitance
1.6pF
Input Offset Voltage (Vos)
1.5mV
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
900uA
Operating Supply Voltage
5V
Output Current
15mA
Output Current per Channel
15mA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
500mW
Power Supply Rejection Ratio (PSRR)
86dB
Quiescent Current
900uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
125ns
Slew Rate
35V/µs
Supply Current
900uA
Technology
BIPOLAR
Voltage Gain
82dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8031ARTZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD8031ARTZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

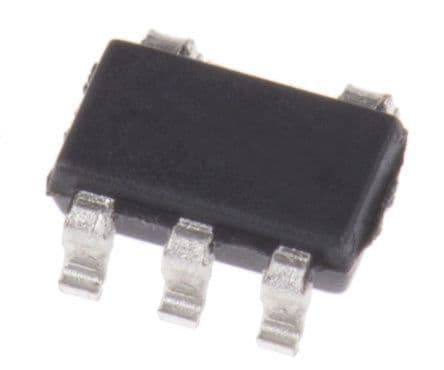

Product Images
