Dual, low-power voltage feedback operational amplifier featuring a 350MHz -3dB bandwidth and 425V/µs slew rate. This integrated circuit offers 80MHz gain bandwidth product, 59dB common mode rejection ratio, and a 500µV input offset voltage. Designed for operation with dual supplies from ±1.5V to ±6V or single supplies from 3V to 12V, it consumes a nominal 3mA supply current. Packaged in a SOT-23-8, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23-8
Quick Jump:
Technical Specifications
Analog Devices AD8039ARTZ-R2 technical specifications.
General
-3db Bandwidth
350MHz
Package/Case
SOT-23-8
Common Mode Rejection Ratio
59dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
80MHz
Input Bias Current
400nA
Input Capacitance
2pF
Input Offset Voltage (Vos)
500uV
Lead Free
Contains Lead
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
3V
Nominal Supply Current
3mA
Number of Amplifiers
2
Number of Circuits
2
Operating Supply Current
1mA
Packaging
Tape and Reel
Quiescent Current
1.5mA
RoHS Compliant
Yes
Slew Rate
425V/µs
Voltage Gain
70dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8039ARTZ-R2 Datasheet
Download the complete datasheet for Analog Devices AD8039ARTZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

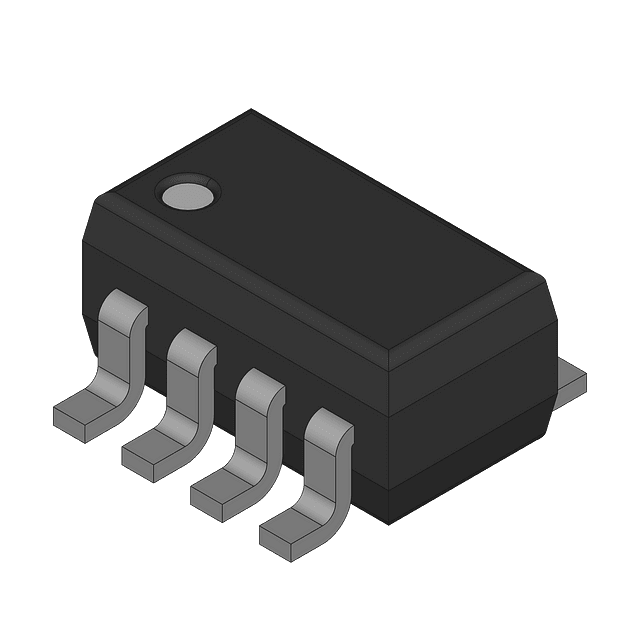

Product Images
