Dual voltage feedback operational amplifier featuring a 350MHz -3dB bandwidth and 425V/µs slew rate. This amplifier offers a 80MHz gain bandwidth product and 15mA output current per channel. Operating from a dual supply range of 1.5V to 6V, it exhibits a low input bias current of 400nA and a 3mV input offset voltage. The component is RoHS compliant and packaged in a 5mm x 4mm x 1.5mm R-style case.
PackageR
Current3mA
Quick Jump:
Technical Specifications
Analog Devices AD8039ARZ technical specifications.
General
-3db Bandwidth
350MHz
Bandwidth
350MHz
Package/Case
R
Common Mode Rejection Ratio
65dB
Contact Plating
Tin, Matte
Dual Supply Voltage
5V
Gain Bandwidth Product
80MHz
Height
1.5mm
Input Bias Current
400nA
Input Capacitance
2pF
Input Offset Voltage (Vos)
3mV
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
3V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
3mA
Output Current
15mA
Output Current per Channel
15mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
71dB
Quiescent Current
1mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
18ns
Slew Rate
425V/µs
Supply Current
3mA
Voltage Gain
70dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8039ARZ Datasheet
Download the complete datasheet for Analog Devices AD8039ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

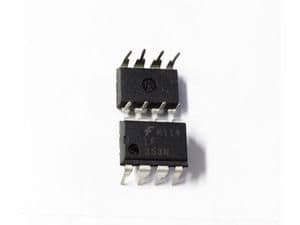

Product Images
