High-speed operational amplifier featuring a 3.8GHz gain bandwidth product and 510MHz -3dB bandwidth. This single-channel amplifier offers a low input offset voltage of 100µV and a high slew rate of 1350V/µs. Designed for surface mounting in an LFCSP EP package, it operates with dual supply voltages from 2.5V to 6V or a single supply from 5V to 12V. Key performance metrics include a 88dB CMRR and 84dB PSRR, with an output current of 178mA per channel.
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8099ACP-R2 technical specifications.
General
-3db Bandwidth
510MHz
Package/Case
LFCSP EP
Common Mode Rejection Ratio
88dB
Contact Plating
Tin, Lead
Dual Supply Voltage
5V
Gain Bandwidth Product
3.8GHz
Input Bias Current
6uA
Input Offset Voltage (Vos)
100uV
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
15mA
Operating Supply Voltage
10V
Output Current per Channel
178mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
84dB
RoHS Compliant
No
Slew Rate
1350V/µs
Voltage Gain
81dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD8099ACP-R2 Datasheet
Download the complete datasheet for Analog Devices AD8099ACP-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

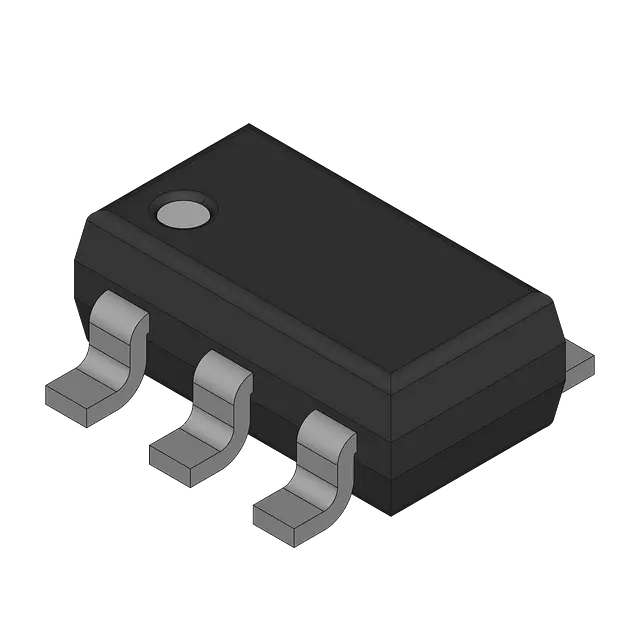

Product Images
